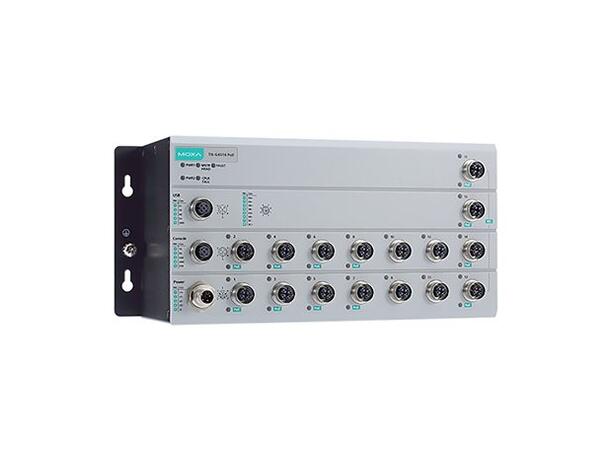

Moxa TN-G4516-8GPoE-4XGPoE-WV-CT-T

The Moxa TN-G4516-8GPoE-4XGPoE-WV-CT-T is an EN 50155 certified Layer-2 multi-gigabit Ethernet switch designed for railway and harsh industrial environments. It includes both Gigabit and 10G PoE+ ports, supports a broad DC power input range, features conformal coating, and operates reliably from -40 °C to 70 °C.

Key Features

• Ethernet Ports: 8 × 1 Gbps PoE+ (M12 X-coded), 4 × 10G PoE+ (M12 X-coded), plus 4 Gigabit Ethernet non-PoE ports
• Total PoE Budget: 120 W
• Power Input: 24 to 110 VDC, dual power inputs with overload and reverse polarity protection
• Operating Temperature: -40 °C to 70 °C
• Housing & Protection: Metal, IP40-rated enclosure; model includes PCB conformal coating (“CT” version)
• Certifications & Standards: EN 50155, EN 50121-4, IEC 60571, EN 45545-2; supports IEEE PoE/PoE+ (802.3af/at), STP/RSTP, VLAN, etc.
• Physical Dimensions & Mounting: Approx. 291.6 × 117.7 × 132.2 mm; wall-mountable
