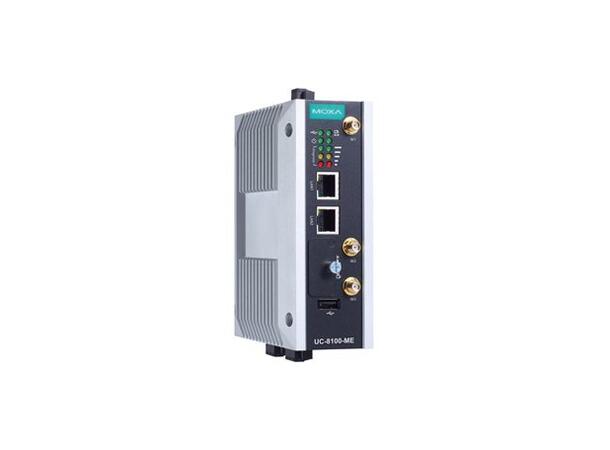

Moxa UC-8112-ME-T-LX1

The Moxa UC-8112-ME-T-LX1 is a rugged, wireless-enabled DIN-rail industrial computer designed for embedded data acquisition and field edge applications. It features a 1 GHz Armv7 Cortex-A8 processor, 1 GB RAM, 8 GB eMMC storage, dual 10/100 Mbps Ethernet ports, and dual RS-232/422/485 serial ports. The device includes a mini-PCIe slot for adding wireless modules (WiFi / LTE), supports wide input voltage, and sustains operation in extreme environments from -40°C to 85°C.

Key Features

• Processor: Armv7 Cortex-A8, 1 GHz :contentReference[oaicite:0]{index=0}
• Memory: 1 GB DDR3 :contentReference[oaicite:1]{index=1}
• Storage: 8 GB eMMC pre-installed; SD slot for expansion :contentReference[oaicite:2]{index=2}
• Ethernet Ports: 2 x auto-sensing 10/100 Mbps RJ-45 :contentReference[oaicite:3]{index=3}
• Serial Ports: 2 x RS-232/422/485, software selectable :contentReference[oaicite:4]{index=4}
• USB Interface: 1 x USB 2.0 host (Type-A) :contentReference[oaicite:5]{index=5}
• Expansion Slot: 1 x mini-PCIe for wireless (WiFi / LTE) :contentReference[oaicite:6]{index=6}
• LEDs / Buttons: Reset button; SD slot LED; programmable LEDs for system / wireless status :contentReference[oaicite:7]{index=7}
• Power Input: 12 to 36 VDC :contentReference[oaicite:8]{index=8}
• Operating Temperature: -40°C to 85°C :contentReference[oaicite:9]{index=9}
• Physical: Housing: metal; Mounting: DIN-rail or wall mount; Dimensions 141 × 125.6 × 54.8 mm; Weight ~550 g :contentReference[oaicite:10]{index=10}
• Certifications & Reliability: Built-in magnetic isolation on Ethernet (1.5 kV); rugged environmental standards; long-term Linux support (Debian9 / kernel 4.4 until 2027) :contentReference[oaicite:11]{index=11}
