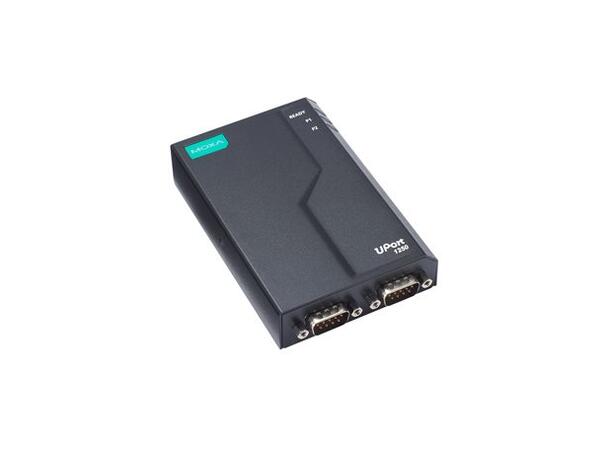

Moxa UPort 1250i-G2

The Moxa UPort 1250i-G2 is a rugged USB-to-serial converter designed for industrial applications requiring reliable and high-performance serial connectivity. It features 2 DB9 serial ports supporting RS-232/422/485 standards, with 2 kV isolation protection. The device operates over a wide temperature range of 0°C to 60°C, making it suitable for various environments.

Key Features

• USB Interface: USB 3.2 Gen 1 (5 Gbps), backward compatible with USB 1.1/2.0
• Serial Ports: 2 x DB9 male connectors supporting RS-232/422/485 standards
• Isolation Protection: 2 kV for enhanced electrical safety
• Baud Rate: Supports 50 bps to 921.6 kbps, including non-standard rates
• Flow Control: RTS/CTS and XON/XOFF supported
• Operating Temperature: 0°C to 60°C
• Power Input: 5 VDC via USB bus power
• Mounting Options: DIN-rail or wall mounting
• Compliance: RoHS, WEEE, and CE certified
