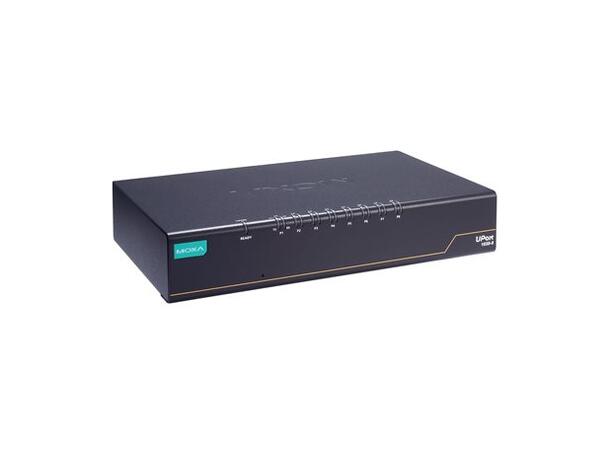

Moxa UPort 1650-8-G2-Hub

The Moxa UPort 1650-8-G2-Hub is a rugged industrial USB-to-serial converter designed to provide reliable multi-serial connectivity. It features 8 DB9 serial ports supporting RS-232/422/485 standards, with 2 kV isolation protection. The device operates over a wide temperature range and supports cascading for up to 32 serial ports, making it suitable for complex industrial systems.

Key Features

• USB Interface: USB 3.2 Gen 1 (5 Gbps), backward compatible with USB 1.1/2.0
• Serial Ports: 8 x DB9 male connectors supporting RS-232/422/485 standards
• Isolation Protection: 2 kV for enhanced electrical safety
• Baud Rate: Supports 50 bps to 921.6 kbps, including non-standard rates
• Flow Control: RTS/CTS and XON/XOFF supported
• Cascading: Supports cascading up to 32 serial ports without additional power adapters
• Operating Temperature: 0°C to 60°C
• Mounting Options: DIN-rail or wall mounting
• Power Input: 12 VDC via locking barrel plug
