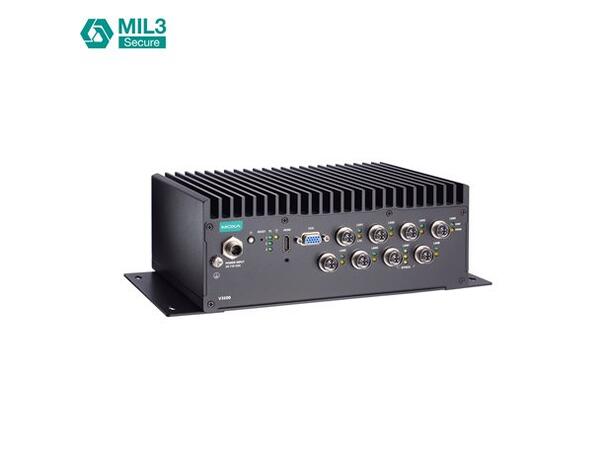

Moxa V3210-TL3-4L-T

The Moxa V3210-TL3-4L-T is a rugged embedded x86 computer powered by an Intel® Core™ i3-1115G4E processor. It features 4 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, and dual 2.5" SSD slots. Designed for industrial applications, it operates within a wide voltage range of 24 to 110 VDC and endures extreme temperatures from -40°C to 70°C. The system also includes a built-in TPM module for enhanced cybersecurity.

Key Features

• Processor: Intel® Core™ i3-1115G4E (2 cores, 4 threads, 6M cache, 2.2 GHz)
• Memory: 16 GB DDR4 (expandable up to 64 GB via SODIMM slots)
• Storage: 128 GB M.2 M-key SSD (pre-installed), dual 2.5" SSD slots
• Ethernet Ports: 4 x GbE (1 x 2.5 GbE, 3 x 1 GbE)
• Serial Ports: 2 x RS-232/422/485 (software-selectable, DB9 male connectors)
• USB Ports: 2 x USB 3.0 Type-A
• Display Outputs: 1 x HDMI, 1 x VGA
• Expansion Slots: 1 x mPCIe, 1 x M.2 E-key
• Digital Inputs/Outputs: 2 x DI, 2 x DO
• Power Input: 24 to 110 VDC
• Operating Temperature: -40°C to 70°C
• Certifications: EN 50155, EN 50121-4, IEC 61373
• Security: Built-in TPM 2.0 module
• Conformal Coating: Optional
