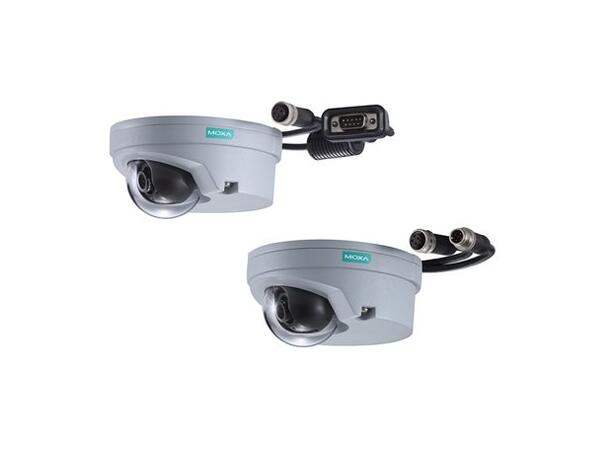

Moxa VPort P06-2M42M-T

The Moxa VPort P06-2M42M-T is a rugged Full HD (1080p) dome IP camera with a 4.2 mm fixed lens and built-in microphone, designed for mobile and railway surveillance in extreme environments. It supports H.264 and MJPEG video codecs, offers up to 4 independent video streams, and includes digital noise reduction (2D/3D) and wide dynamic range (~100 dB). Power over Ethernet (PoE) via an M12-D connector, EN 50155 certification, IK8 vandal resistance, IP66 ingress protection, and an extended operating temperature range from –40 °C to 70 °C make it ideal for harsh conditions.

Key Features

• Sensor: 1/3-inch progressive-scan CMOS; up to 1920 × 1080 @ 30 fps
• Lens: 4.2 mm fixed focal length (F1.6), diagonal 82°, horizontal 62°, vertical 34°
• Video Streams & Codecs: Up to 4 independent H.264 or MJPEG streams
• Imaging Enhancements: 2D/3D digital noise reduction, ~100 dB wide dynamic range
• Audio: Built-in microphone
• Connectivity: PoE (IEEE 802.3af) via rugged M12-D 4-pin Ethernet connector; microSD (SDXC) slot for local storage
• Certifications & Protection: EN 50155 (railway), IK8 vandal resistance, IP66 ingress protection
• Operating Temperature: –40 °C to 70 °C
• Physical Build: Metal housing with PC dome cover, compact footprint (~110 × 115.5 × 61.8 mm)
