Moxa VPort 06-2M60M-T

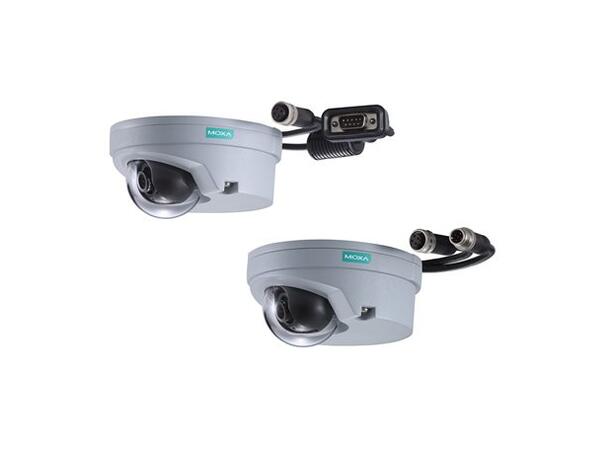

The Moxa VPort 06-2M60M-T is a rugged Full HD (1080p) dome IP camera with a 6.0 mm fixed lens and built-in microphone, designed for mobile and railway surveillance in harsh environments. It supports H.264 and MJPEG codecs, offers up to 4 independent video streams, and includes digital noise reduction (2D/3D) and wide dynamic range (100 dB). Power over Ethernet (PoE) via an M12 connector, EN 50155 certification, IK8 vandal resistance, IP66 ingress protection, and an extended operating temperature range from –40 °C to 70 °C make it well suited for severe conditions.

Key Features

• Sensor: 1/3-inch progressive-scan CMOS; up to 1920 × 1080 @ 30 fps
• Lens: 6.0 mm fixed focal length (F1.8), diagonal 62°, horizontal 43°, vertical 24°
• Video Streams & Codecs: Up to 4 independent streams using H.264 or MJPEG, with DNR and WDR
• Audio: Built-in microphone
• Connectivity: Ethernet via rugged M12-D 4-pin connector; Power-over-Ethernet capable
• Local Storage: microSD slot (SDXC compatible)
• Certifications & Protection: EN 50155 compliant, IK8 vandal resistance, IP66 ingress protection
• Operating Temperature: –40 °C to 70 °C
• Housing & Build: Metal body with PC dome cover; compact size, ruggedized for vibration, dust, and moisture
