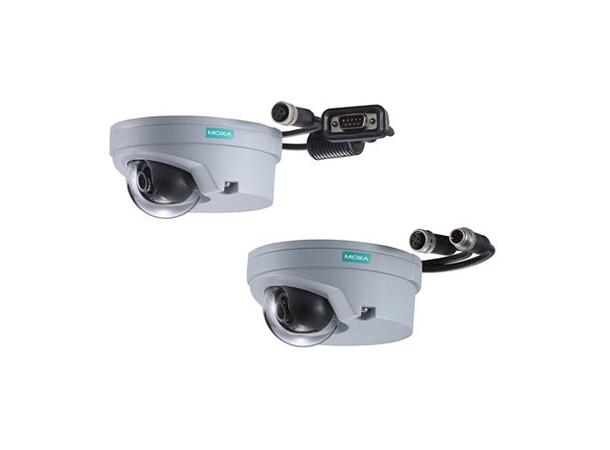

Moxa VPort P06-2M80M-T
The Moxa VPort P06-2M80M-T is a rugged Full HD (1080p) dome IP camera designed for mobile and railway surveillance. It features an 8 mm fixed lens, a built-in microphone, and supports H.264 and MJPEG video codecs. The camera is built for harsh environments, offering EN 50155 compliance, IK8 vandal resistance, IP66 ingress protection, and operates over a wide temperature range of –40 °C to 70 °C. It supports Power over Ethernet (PoE) via an M12-D connector and includes a microSD slot for local storage.
Key Features
- Sensor: 1/3-inch progressive scan CMOS, up to 1920 × 1080 @ 30 fps
- Lens: 8.0 mm fixed focal length, F1.6 (Diagonal 42°, Horizontal 33°, Vertical 17°)
- Video Streams & Codecs: Supports H.264 and MJPEG; multiple independent video streams with DNR and WDR (~100 dB)
- Audio: Built-in microphone (1 mic)
- Connectivity: PoE (IEEE 802.3af) via M12-D coded 4-pin female Ethernet connector; digital input channel; microSD slot (SDXC) for local storage
- Ruggedness & Certifications: EN 50155 (mandatory sections), IK8 (vandal resistance), IP66 ingress protection; metal housing with PC dome cover
- Operating Temperature: –40 °C to 70 °C (T-model)
- Other Features: Wide dynamic range (? 100 dB), 2D/3D digital noise reduction, flickerless control, ONVIF conformity, several image rotation/flip options
