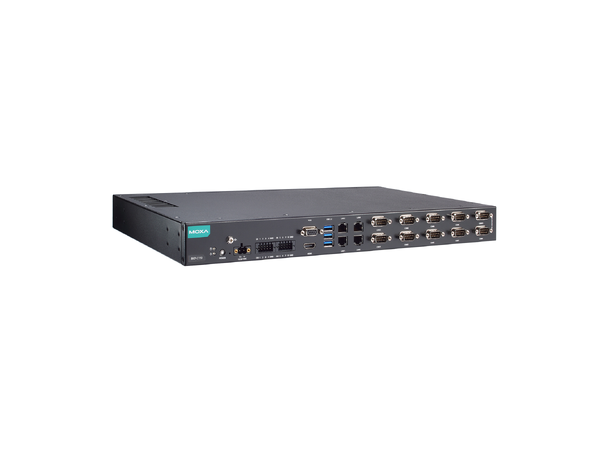

Moxa RKP-C110-C3-8C-T
The Moxa RKP-C110-C1-8C-T is a rugged, fanless 1U rackmount industrial computer designed for high-density I/O and reliable performance in automation and edge computing environments. Powered by an Intel® i3-1115G4E processor, it features extensive serial connectivity, dual SSD storage with RAID support, and wide OS compatibility. Its front-accessible design and robust build make it ideal for industrial control, data acquisition, and communication gateway applications.
Key Features
- Processor: Intel® i3-1115G4E
- Memory: 8 GB DDR4 pre-installed, expandable up to 32 GB via 1 SODIMM slot
- Storage: 2 x 2.5-inch SSD slots (SATA III), RAID 0/1 support
- Ethernet: 4 x 10/100/1000 Mbps (RJ45)
- Serial Ports: 10 x RS-232/422/485 (DB9 male, software-selectable)
- Digital I/O: 8 x DI, 8 x DO (sink type, 200 mA/channel)
- USB: 3 x USB 3.0 Type-A
- Video Output: 1 x HDMI 2.0b, 1 x VGA
- TPM: TPM v2.0
- Power Input: 12/24 VDC via screw-fastened Euroblock terminal
- Power Consumption: 90 W
- Operating Temperature: -30 to 60°C (-22 to 140°F)
- Mounting: 1U rackmount
- IP Rating: IP20
- Supported OS: Windows 11 Professional, Windows 10 IoT Enterprise LTSC 2021, Debian 11, Ubuntu 22.04 LTS, RHEL 9
