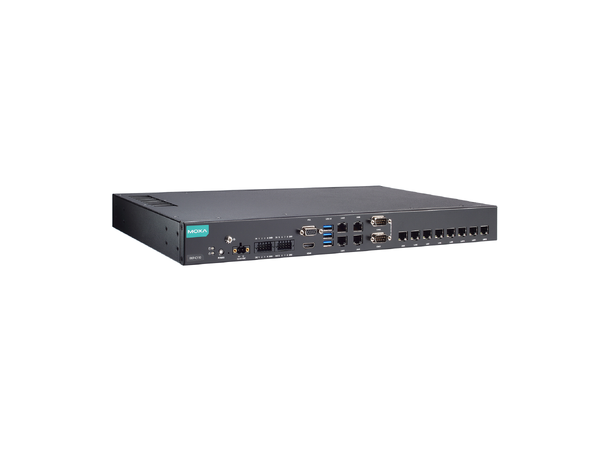

Moxa RKP-C110-C3-8L-T

The Moxa RKP-C110-C3-8L-T is a fanless 1U rackmount industrial computer designed for high-bandwidth networking and automation tasks in harsh environments. Powered by an Intel® i3-1115G4E processor, it features an impressive 12 LAN ports, dual SSD storage with RAID support, and wide OS compatibility. Its front-accessible design and robust I/O make it ideal for industrial control, data acquisition, and communication gateway applications.

Key Features

• Processor: Intel® i3-1115G4E
• Memory: 8 GB DDR4 pre-installed, expandable up to 32 GB via 1 SODIMM slot
• Storage: 2 x 2.5-inch SSD slots (SATA III), RAID 0/1 support
• Ethernet: 12 x 10/100/1000 Mbps (RJ45)
• Serial Ports: 2 x RS-232/422/485 (DB9 male, software-selectable)
• Digital I/O: 8 x DI, 8 x DO (sink type, 200 mA/channel)
• USB: 3 x USB 3.0 Type-A
• Video Output: 1 x HDMI 2.0b, 1 x VGA
• TPM: TPM v2.0
• Power Input: 12/24 VDC via screw-fastened Euroblock terminal
• Power Consumption: 90 W
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Mounting: 1U rackmount
• IP Rating: IP20
• Supported OS: Windows 11 Professional, Windows 10 IoT Enterprise LTSC 2021, Debian 11, Ubuntu 22.04 LTS, RHEL 9
