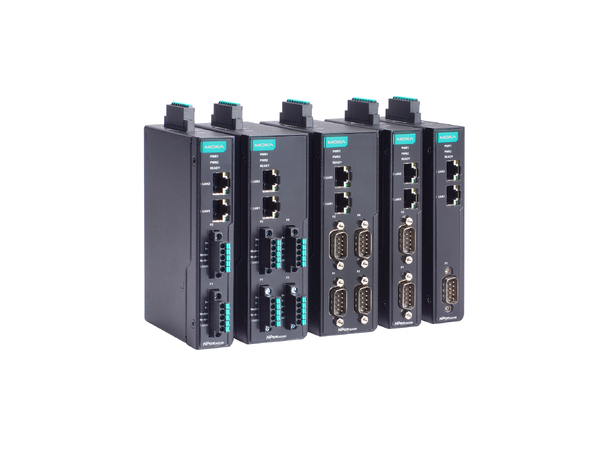

Moxa NPort IA5150-S-SC-G2

The Moxa NPort IA5150-S-SC-G2 is a rugged, industrial-grade 1-port serial device server equipped with a 100BaseFX single-mode fiber Ethernet port (SC connector). Designed for reliable serial-to-Ethernet connectivity in harsh environments, it supports RS-232/422/485 interfaces and offers advanced surge protection and secure communication protocols. Ideal for applications in oil & gas, power automation, and transportation, it ensures dependable performance even in electrically noisy or hazardous locations.

Key Features

• Serial Interface: 1 x RS-232/422/485 (DB9 and terminal block)
• Ethernet Interface: 1 x 100BaseFX (single-mode SC connector), 2 x 10/100BaseT(X) RJ45
• Magnetic Isolation: 1.5 kV built-in
• Surge Protection: IEC 61000-4-5 compliant for serial, Ethernet, and power
• Operating Modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Terminal, Reverse Terminal
• Management: Web console (HTTP), Telnet, SNMP, MXview, MXconfig
• Security: Local password authentication
• Power Inputs: Dual redundant DC inputs (12–48 VDC)
• Relay Output: Alerts for Ethernet/power failures or serial signal changes
• Operating Temperature: 0 to 55°C
• Housing: Metal, IP30-rated, DIN-rail mountable
• Certifications: DNV, ATEX Zone 2, IECEx, CID2
• Fiber Distance: Up to 40 km (single-mode)
