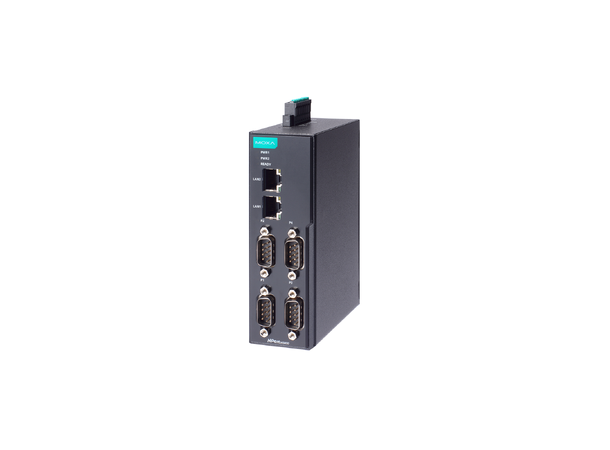

Moxa NPort IA5450I-G2

The Moxa NPort IA5450I-G2 is a rugged, industrial-grade 4-port serial device server designed for reliable serial-to-Ethernet connectivity in harsh environments. Supporting RS-232/422/485 interfaces with 2 kV isolation protection and dual Ethernet ports for network redundancy or cascading, it ensures seamless integration into industrial automation systems. With advanced security features and wide protocol support, it is ideal for applications in oil & gas, power automation, and transportation.

Key Features

• Serial Interface: 4 x RS-232/422/485 (DB9 and terminal block), 2 kV isolation
• Ethernet Interface: 2 x 10/100BaseT(X) RJ45 (Auto MDI/MDI-X)
• Magnetic Isolation: 1.5 kV built-in
• Surge Protection: IEC 61000-4-5 compliant for serial, Ethernet, and power
• Operating Modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Terminal, Reverse Terminal
• Management: Web console (HTTP/HTTPS), SNMPv1/v2c/v3, MXview, MXconfig
• Security: ECC-256/384/521, RSA-1024/2048/3072/4096, AES-128/256, SHA-256/384, HMAC, Secure Boot, TRNG
• Power Inputs: Dual redundant DC inputs (12–48 VDC)
• Relay Output: Alerts for Ethernet/power failures or serial signal changes
• Operating Temperature: -40 to 75°C
• Housing: Metal, IP30-rated, DIN-rail mountable
• Certifications: DNV, ATEX Zone 2, IECEx, CID2
