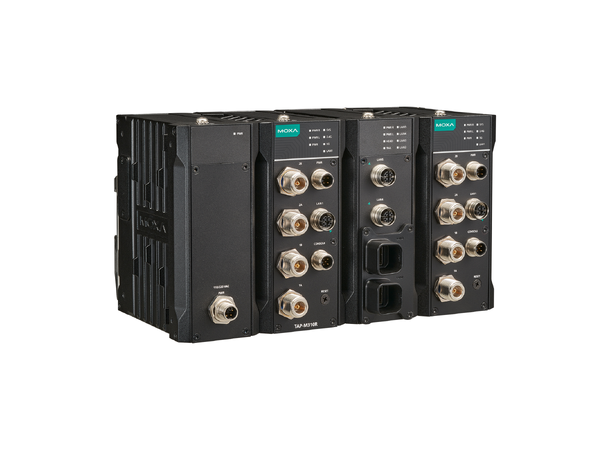

Moxa TAP-M310R-1P2R1S-EU-CT-T

The Moxa TAP-M310R-1P2R1S-EU-CT-T is a rugged Wi-Fi 6 (802.11ax) wireless access point/client designed for railway wayside applications. Equipped with two radios and one switch module, it supports high-speed dual-band wireless communication and robust security features. Its IP67-rated housing, conformal coating, and wide operating temperature range make it ideal for harsh environments, ensuring reliable train-to-ground connectivity for CBTC, CCTV, and onboard services.

Key Features

• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Frequency Bands:
  • 2.4 GHz: 802.11b/g/n/ax with 1024 QAM, 20/40 MHz
  • 5 GHz: 802.11a/n/ac/ax with 1024 QAM, 20/40/80 MHz
• Data Rates: Up to 576 Mbps (2.4 GHz), 1201 Mbps (5 GHz)
• Wireless Modes: Access Point, Client, Client-Router, Master, Sniffer, Slave
• Security: WPA2/WPA3 Personal and Enterprise (IEEE 802.1X/RADIUS, AES)
• Antenna Connectors: 8 x N-type (female)
• Power Input: M12 K-coded 110/220 VAC
• Operating Temperature: -40 to 75°C
• Housing: IP67-rated, anti-vibration M12 design, conformal coating
• Certifications: EN 50155 compliant, suitable for rolling stock applications
• Special Features: Controller-based Turbo Roaming (<50 ms handover), AeroLink Protection, built-in band-pass filters and antenna splitters

About the TAP-M310R Series

The TAP-M310R Series offers ruggedized Wi-Fi 6 wireless AP/client solutions for railway train-to-ground communications. Designed for CBTC and CCTV applications, the series includes multiple configurations for onboard and wayside deployment. With support for AC/DC power modules, Ethernet switch modules, and Moxa Turbo Chain, the TAP-M310R Series ensures flexible, high-performance wireless networking in demanding rail environments.
