Moxa UC-8210-T-LX-S

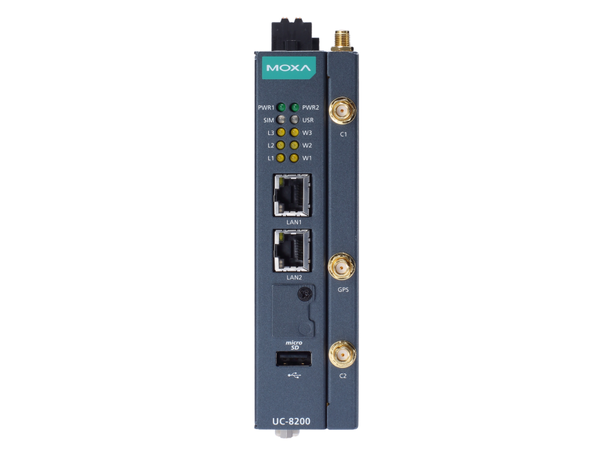

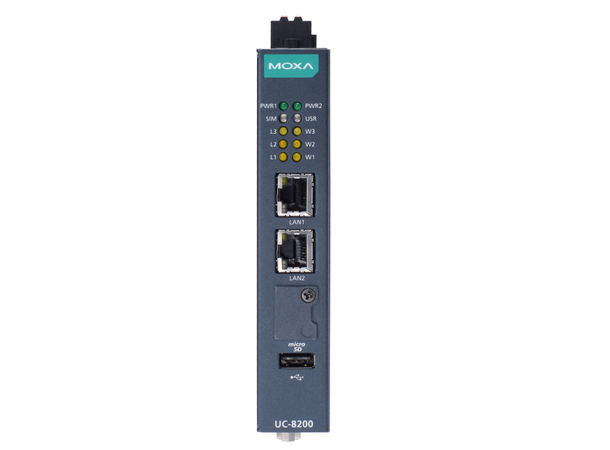

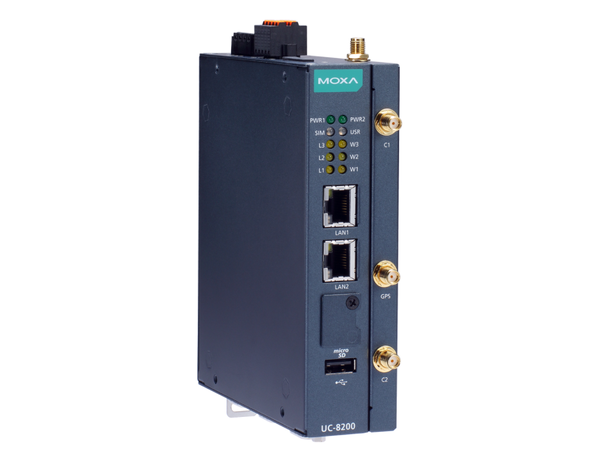

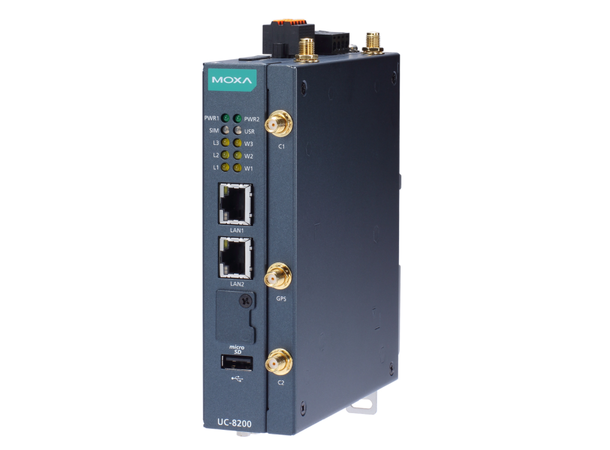

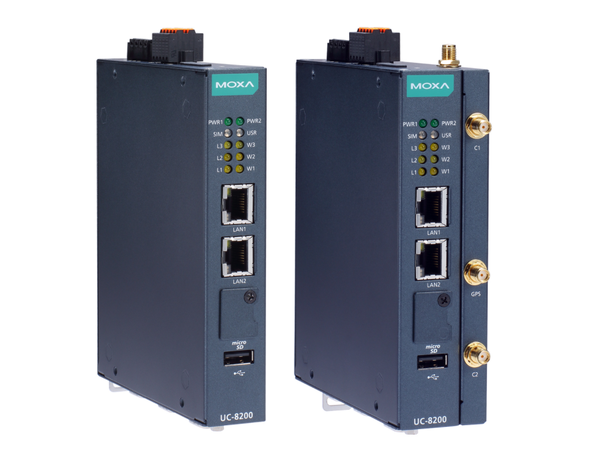

The Moxa UC-8210-T-LX-S is an ARM-based DIN-rail industrial computer designed for long-term deployment in harsh environments. It features a dual-core 1 GHz processor, 2 GB DDR3L memory, 8 GB eMMC storage, dual Gigabit Ethernet ports, dual serial ports, a CAN interface, and options for wireless or LTE connectivity. With a wide operating temperature range and IEC 62443-4-2 security compliance, it is suited for IIoT, data acquisition, and edge computing applications.

Key Features

• CPU: Armv7 Cortex-A7 dual-core 1 GHz
• Memory: 2 GB DDR3L
• Storage: 8 GB eMMC, microSD expansion slot
• Ethernet Ports: 2 × 10/100/1000 Mbps RJ45
• Serial Interfaces: 2 × RS-232/422/485 (software selectable)
• CAN:** 1 × CAN 2.0A/B interface
• I/O: 4 digital inputs (DI) + 4 digital outputs (DO)
• Expansion: Dual mini PCIe slots for Wi-Fi / cellular modules
• Security & OS: TPM integrated, Moxa Industrial Linux (10-year support), IEC 62443-4-2 certified
• Operating Temperature: –40 °C to 85 °C (normal), –40 °C to 70 °C when LTE enabled
• Certifications: CE, FCC, UL, and industrial EMC (EN 55032/35, IEC 61000 series)
• Warranty & Support: 5-year hardware warranty, 10 years software support
• MTBF: ~708,581 hours
