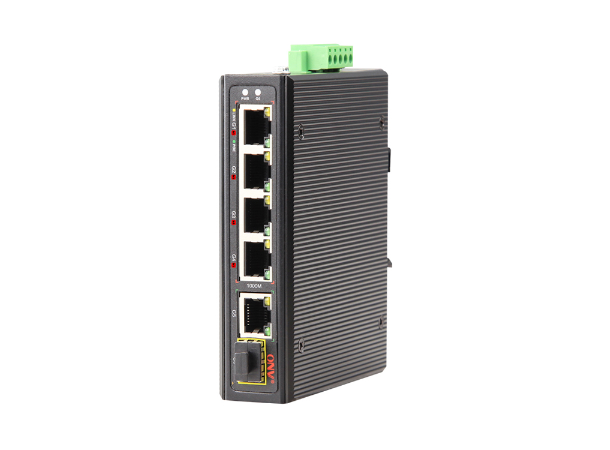

ONV-IPS33064PFG-bt is an industrial network PoE Switch with 240W PoE budget
(max 95W per port) when using 48-57VDC. there is also two SFP slots availible for fiber
connection if needed (SFP sold separately).
Interface
Fixed Port
4*10/100/1000Base-T PoE ports (Data/Power)
1*10/100/1000Base-T uplink RJ45 port (Data)
1*1000Base-X uplink SFP fiber slot port (Data)
2 sets of V+, V- redundant DC power port (5P Phoenix terminal)
Ethernet Port
10/100/1000Base-T auto-sensing, full/half duplex
MDI/MDI-X self-adaption.
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(=100 meter)
100BASE-TX: Cat5 or later UTP(=100 meter)
1000BASE-T: Cat5e or later UTP(=100 meter)
Fiber Port
Gigabit SFP optical fiber port, default matching optical modules
(optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/Distance
Multi-mode: 850nm 0 ~ 550M, Single-mode: 1310nm 0 ~ 40KM,
1550nm 0~ 120KM.
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IEEE802.3x
LED Indicator
Power: PWR (green), Network : Link (yellow), PoE : PoE (green),
PoE & Power Supply
PoE Port Port 1 to 4 @bt PoE, backwards compatible with IEEE802.3af/at
Power Supply Pin: 1/2 (+), 3/6 (-)&4/5 (+), 7/8 (-)
Max Power Per Port
95W; IEEE802.3af/at/bt
Operation TEMP/Humidity
-20~+75°C;5%~90% RH Non condensing
Storage TEMP /Humidity
-40~+85°C;5%~95% RH Non condensing
Dimension
119*100*30mm
Net Weight
0.35kg
Installation
Desktop, 35mm DIN rail
Certification
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B;RoHS;
For more details see datacheet.
