Interface

• 2 Multi-Gigabit RJ45 interfaces
  • 1-port Data + Power output
  • 1-port Data input

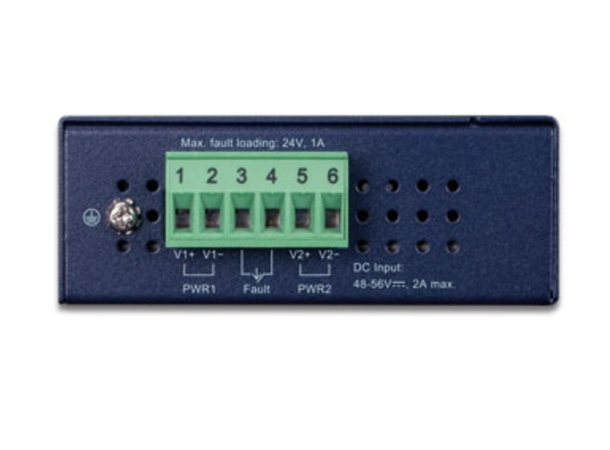

• 1 terminal block for master and slave power input.
  (Power Range: 48 ~ 54V DC redundant power)
• 1 PoE mode (standard/legacy and force) DIP switch

Power over Ethernet

• Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
• Supports PoE power up to 60 watts for PoE port
• Auto-detection of PoE IEEE 802.3at/bt equipment and devices from
  being damaged by incorrect installation
• Monitors the status of the total PoE usage in real time
• Remote power feeding up to 100m
• Auto-detection of DC input voltage

Hardware

• IP30 slim-type metal case
• LED indicators for Power LED , PoE-in-Use LED and PoE Usage LED

Industrial Case and Installation

• Solid wall mount or DIN-rail mount installation
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
