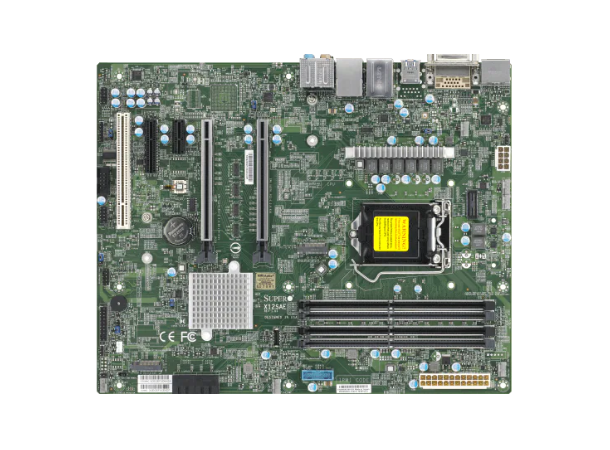

X12SAE ATX Motherboard, intel Xeon W-120

10th gen i9,i7,i5,i3, LGA-1200, Raid 0&1

Product nr: 138734
X12SAE ATX Motherboard, intel Xeon W-120 10th gen i9,i7,i5,i3, LGA-1200, Raid 0&1
Product SKUs

MBD-X12SAE

Physical Stats

Form Factor

  • ATX

Dimension

  • 12" x 9.6" (30.48cm x 24.38cm)
Processor

CPU

  • Intel® Xeon® W-1200 Processors, 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

Core


  • Up to 10 cores
System Memory

Memory Capacity

  • 4 DIMM slots
  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MT/s

Memory Type

  • Up to 128GB of ered memory with speeds of up to 2933MHz (2DPC)

DIMM Sizes

  • 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage


  • 1.2V
On-Board Devices

Chipset

  • Intel® W480/ W480E

SATA

  • Intel® W480/ W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Audio

  • ALC 888S HD Audio

Network Controllers

  • Single LAN with Intel® Ethernet i225V
  • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
Input / Output

LAN

  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 2.5 Gigabit Ethernet LAN port

USB

  • 2 USB 2.0 port(s) (2 via header)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 type A)
  • 5 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C; 1 via header)

Video Output

  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)

Serial Port

  • 1 COM Port(s) (1 header)

TPM


  • 1 TPM Header
Expansion Slots

PCIe

  • 1 PCIe 3.0 x4,
  • 2 PCIe 3.0 x16 slots (16/NA or 8/8),
  • 1 PCIe 3.0 x1

M.2

  • M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS

BIOS Type

  • 256MB SPI Flash with AMI BIOS

BIOS Features

  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later
Management

Software

System Management Software

  • SuperDoctor 5

Power Configurations

  • Power-on mode for AC power recovery, ACPI Power Management, Power supply monitoring, Power button override mechanism, Wake-on-LAN
Security

Hardware

  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring

Voltage

  • VBAT, System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, VRM temperature, LAN temperature, CPU thermal trip support, +1.8V PCH, +1.0V PCH

LED

  • Power LED
  • BMC/IPMI Heartbeat LED
  • Catastrophic Error LED

FAN

  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Overheat LED indication

Other Features

  • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment

Operating Temperature Range

  • 0°C - 50°C (32°F - 122°F)
