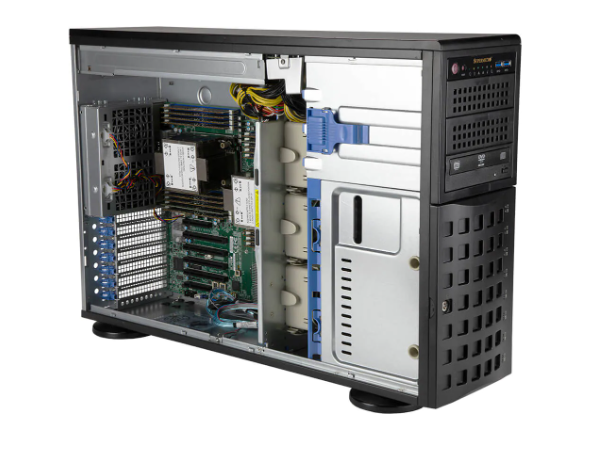

SuperServer SYS-740P-TRT

Super X12DPi-NT6, Tower/4U

Product nr: 138743
SuperServer SYS-740P-TRT Super X12DPi-NT6, Tower/4U

Product SKUs

SuperServer SYS-740P-TRT

Motherboard

Super X12DPi-NT6

Processor

CPU

  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors

Core Count

  • Up to 36C/72T; Up to 60MB Cache per CPU

Note

  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory

Memory

  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series

Memory Voltage

  • 1.2V

On-Board Devices



Chipset

  • Intel® C621A

Network Connectivity

Input / Output

LAN

  • 1 RJ45 1 GbE Dedicated BMC LAN port

USB

  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)

Video

  • 1 VGA port

DOM

  • 2 SuperDOM (Disk on Module) ports

System BIOS



BIOS Type

  • AMI 32MB SPI Flash EEPROM
Management

Software

Power configurations

  • ACPI/APM Power Management
Security

Hardware

  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring

CPU

  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator

FAN

  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors

Temperature

  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis

Form Factor

  • Tower/4U

Model

  • CSE-745BTS-R1K23BP
Dimensions and Weight

Height

  • 17.8" (452 mm)

Width

  • 7" (178 mm)

Depth

  • 25.5" (647 mm)

Package

  • 24.6" (H) x 14" (W) x 31.3" (D)

Weight

  • Gross Weight: 73.5 lbs (33.9 kg)
  • Net Weight: 56 lbs (25.9 kg)

Available Color

  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage

Drive Bays Configuration

  • Default: Total 8 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
  • Option A: Total 10 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
    • 2 front fixed 3.5" NVMe*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2

Peripheral Bays

  • 1 5.25" DVD bay (optional)
System Cooling

Fans

  • 3 middle Fan(s)
  • 2 rear Fan(s)
Power Supply
1x 1200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)

76 x 40 x 336 mm

Input

1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output TypeBackplanes (gold finger)

Operating Environment



ROHS

  • RoHS Compliant

Environmental Spec.

  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
