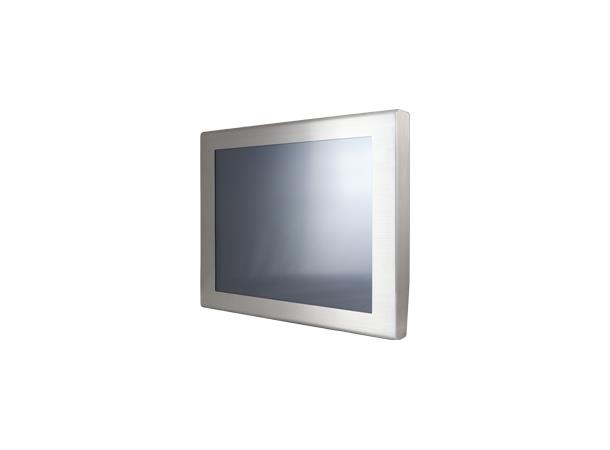

APC-3784BT 17" 5 sides IP65 Stainless

Aplex/N2930/4GB/Res.Touch

Product nr: 119087
115478
Specifications
System
CPUOnboard Intel Celeron N2930(1.83GHz)/Onboard Intel Atom E3845(1.91GHz) for option
System ChipsetSoC
System MemoryOnboard 2GB DDR3L SDRAM/Onboard 4GB DDR3L SDRAM for option
Power ConsumptionMAX: 21.9W
USB3 x USB 2.0 type A, 1 x USB 3.0 type A
Serial / Parallel1 x RS-232/422/485 DB-9 selectable, Default RS-485, COM12 x RS-232 DB-9, COM2 and COM3
Audio2 x Line-out, phone jack
LAN2 x GbE LAN RJ-45
Power1 x 3-pin terminal block connector, 1 x Power Switch on/off
Storage Space
HDD1 x 2.5" HDD Space
Movable device1 x Internal SD slot onboard
Expansion
On board expansion bus1 x Mini PCIe full size, Optional WiFi/BT with Antenna
Display
LCD Size17" TFT LCD
Max. resolution1280 x 1024
Max. color16.7M
Luminance(cd/m²)350
Viewangle(H°/V°)170/160
Contrast1000: 1
Backlight lifetime(hrs)30000
Touch Screen(Option)
Touch TypeResistive Touch Screen
InterfaceUSB
Light transmission(%)Over 80%
Power
Power input9~36V DC
Mechanical
ConstructionStainless Steel Chassis
IP rating5 sides IP65 with I/O cover
MountingVESA 75x75
Dimension(mm)432 x 358 x 55
Net weight(Kgs)7.3Kg
Enviroment
Operating temperature(°C)0~50°C
Storage temperature(°C)-30~70°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE / FCC Class A
Operating System SupportWindows 7 Professional for Embedded Systems,Windows 7 Ultimate for Embedded System,Windows Embedded 8.1 Pro,Windows Embedded 8.1 Industry pro
Ordering Information
