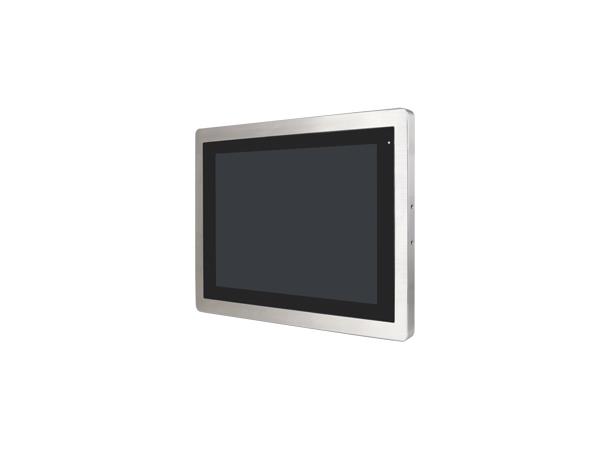

APC-3794P 17" IP66/IP69K Stainless

Aplex/N2930/4GB/320GB HDD/PCap touch

Product nr: 119486
115762



Specifications
System
CPUIntel Celeron Processor N2930
System ChipsetSoC
System MemoryOnboard DDR3L 4GB 1333/1600MHz
Power ConsumptionMAX: 22.2W
USB1 x M12 8-pin for 1 x USB 3.0
Serial / Parallel1 x M12 8-pin for RS-232/422/485, COM1, Default RS-2321 x M12 8-pin for RS-232, COM2Optional I/O (either one): 1 x M12 8-pin for 2 x USB 2.0 / 1 x Power Switch
LAN1 x M12 8-pin for GbE LAN
Power1 x M12 3-pin DC Power
Storage Space
HDD1 x 2.5" SATA HDD or SSD, Easily Accessible
Movable device1 x Internal SD Card Slot Onboard
Expansion
On board expansion bus1 x Mini PCIe full size
Display
LCD Size15" TFT-LCD
Max. resolution1024 x 768
Max. color16.7M
Luminance(cd/m²)420
Viewangle(H°/V°)160(H)/160(V)
Contrast800: 1
Backlight lifetime(hrs)50,000 hrs
Touch Screen(Option)
Touch TypeProjected Capacitive Touch
InterfaceUSB
Light transmission(%)Over 90%
Power
Power input9~36V DC
Mechanical
ConstructionStainless Steel Chassis
IP ratingFull IP66/IP69K
MountingPanel Mount/VESA 75 x 75/Wall Mount
Dimension(mm)399 x 324 x 58.8 mm
Net weight(Kgs)5.3Kg
Enviroment
Operating temperature(°C)0~50°C / -20~60°C (with Industrial SSD)
Storage temperature(°C)-30~70°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE / FCC Class A
Operating System SupportWindows 7 Professional for Embedded Systems,Windows 7 Ultimate for Embedded Systems,Windows Embedded 8.1 Pro,Windows Embedded 8.1 Industry pro
Ordering Information
Order No Description
APC-3594P-0215" XGA IP66/IP69K full flat bezel design stainless steel panel PC, Intel® Celeron® Processor N2930, DDR3L 4G on board, 2.5" SATA II 320GB Industrial HDD, with projective capacitive touch, 9~36V DC power input with Adaptor, stainless steel enclosure
Dimension
