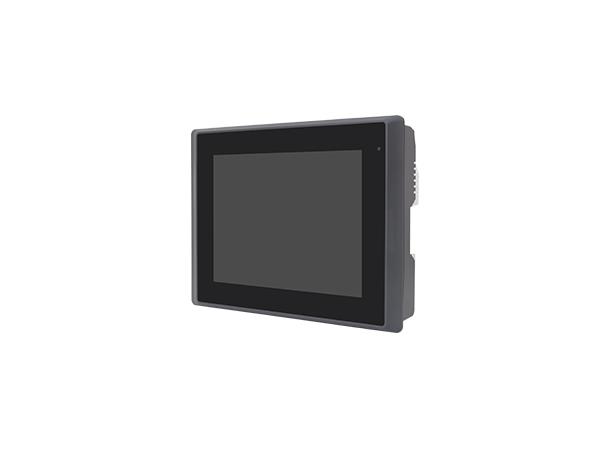

ARMPAC-608 8" Panel PC

Aplex/ARM Cortex A9/1GB ram/Res.touch

Product nr: 120812
117363
Specifications
System
CPUFreescale I.MX6 DualLite/Quad(Option) ARM Cortex A9 processor 1.0GHz
System MemoryOnboard 1GB DDR3 DRAM
External I/O
USB2 x USB 2.0 type A, 1 x USB 2.0 OTG, Micro B Type
Serial / Parallel1 x RS-232/422/485 DB-9, COM1
Audio1 x Line out audio jack
LAN1 x LAN Port
Power1 x 9~36V DC Power Input via 1 x 3-pin Terminal Block
Storage Space
HDDOnboard 4GB eMMC NAND Flash
Movable device1 x Micro SD Slot
Expansion
On board expansion bus1 x Mini PCIe slot full size, 1 x SIM card slot
Display
LCD Size8" TFT-LCD
Max. resolution800 x 600
Max. color262K
Luminance(cd/m²)350
Viewangle(H°/V°)140/135
Backlight lifetime(hrs)40000
Touch Screen(Option)
Touch TypeResistive Touch Screen
InterfaceSPI
Light transmission(%)over 80%
Power
Power input9~36V DC
Mechanical
ConstructionPlastic
IP ratingIP65 Front Panel
MountingPanel mounting, VESA 75 x 75
Dimension(mm)231.1 x 176.1 x 45
Enviroment
Operating temperature(°C)0~50°C
Storage temperature(°C)-20~60°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE / FCC Class A
Operating System Support
Android 4.2.2
Ordering Information
Order NoDescription
OptionTB-549CAN1: WIFI/3G Module via Mini-PCIe
Dimension
