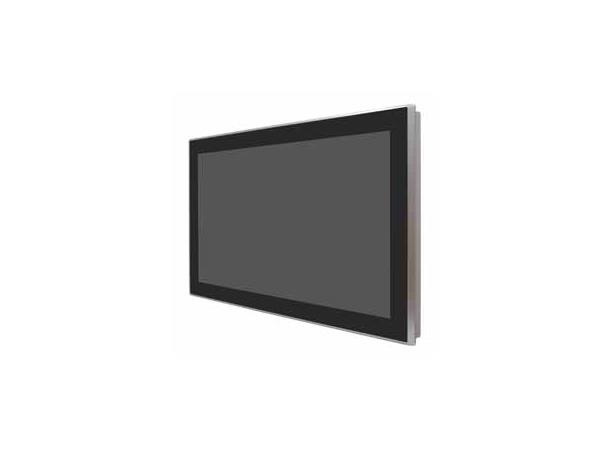

ARCHMI-932AP 32" Panel PC

i3-6100U/PC Touch

Product nr: 126064
177087
DatabladProduct
pecifications
System
CPUOnboard Intel 6th Gen. Core i3/ i5(option) Processors
System ChipsetSoC
System Memory1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz
Power Consumption80W
External I/O
USB2 x USB 3.0 type A
Serial / Parallel1 x DB-9 RS-232/422/485, COM1 (Default RS-232)1 x RS-232 DB-9, COM2
Audio1 x Audio Line Out
LAN2 x GbE LAN RJ-45
Power1 x AC Power input, 1 x 2-Pin Power Switch Connector
Storage Space
HDD/SSD1 x 2.5" SATA HDD bay for SATA3 HDD (Easy Accessible)
Expansion
On board expansion bus1 x Internal Mini-PCIe slot full size
Display
LCD Size32" TFT-LCD
Max. resolution1920 x 1080
Max. color16.7M
Luminance(cd/m²)500
Viewangle(H°/V°)178/178
Backlight lifetime(hrs)50,000
Touch Screen(Option)
Touch TypeProjected Capacitive Touch
InterfaceUSB
Light transmission(%)Over 90%
Power
Power inputAC 90~264V
Mechanical
ConstructionAluminum Die-casting Chassis
IP ratingFront Panel IP66
MountingPanel Mounting / VESA 200 x 200
Dimension(mm)810 x 490 x 70
Net weight(Kgs)17.44
Environment
Operating temperature(°C)0~50°C, -20~60°C (option)
Storage temperature(°C)-20~60°C
Storage humidity10 to 90%@ 40°C, non-condensing
CertificationMeet CE / FCC, Class A
Operating System Support
Windows 7 64 bit / Windows 8 64 bit / Windows 10 IoT 64 bit
Ordering Information
ItemDescription
ARCHMI-932AP-0132" FHD Fanless HMI barebone with Intel Core i3 CPU, 4GB DDR4 RAM, Projected Capacitive touch screen, AC 90~264V input with adapter, Aluminum chassis
Option? 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1
? 2 x CAN bus via TB-528CAN2
? 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1
? 2 x USB 2.0 type A Via TB-528U2
? UPS battery 21W/10.8V/1.95Ah(3S1P)
Dimension
