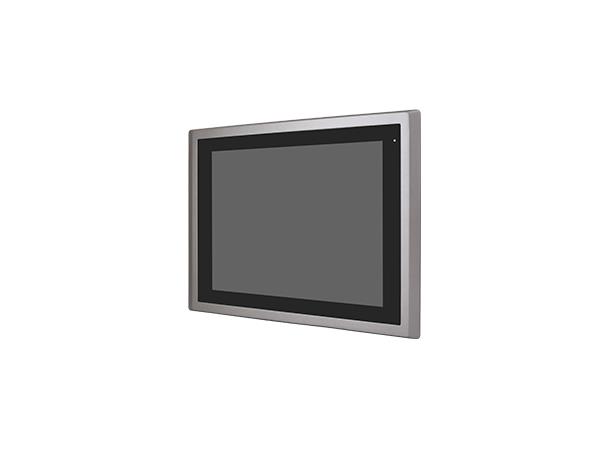

APLEX ARCMI-9XXB is a series of industrial compact size HMI which comes in resistive touch or projected capacitive touch with full-sized 12.1”/ 15”/ 15.6”/ 17”/ 18.5”/ 19”/ 21.5”/ 32” TFT-LCD to fit in any factory automation applications. To enhance and streamline the production process in smart factories. APLEX elevated the platform of CPU that the performance is much better than the previous one. Moreover, Whiskey Lake CPU also provides GPU of Intel® UHD Graphics 620, which can broaden the application field in more usage.

ARCHMI-9XXB is a rugged design HMI equipped with an IP66 flat front panel compliant with aluminum die-casting to resist dust and water. Resistive touch screen and 7H hardness projective capacity touch screen are also available for different operational requirements. Moreover, ARCHMI-9XXB can prevent damage from sudden shutdown and power failure by optional featuring a backup battery. The backup battery will immediately provide a short time of power to the ARCHMI-9XXB system when an outage occurs so that there will have sufficient time for equipment to be shut down properly. In addition, it can also prevent data loss, hardware/software damage and can offer facilities a stable and long lifespan.

APLEX ARCHMI-9XXB series information

• CPU: Intel 8th Gen. Core I3-8145UE or I5-8365UE
• Memory: 1 x 260Pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
• Storage: 1 x M.2 M Key slot 1 x 260Pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
• Expansion: 1 x Mini-PCIe, 1 x M.2 2230 E key
• Chassis: Fanless, Aluminum Die-casting and flat front panel
• IP Rating:IP66 Compliant front bezel

Options for APLEX ARCHMI-9XXB series

• I3-8145UE upgrade to I5-8365UE
• 1 x RS-232(Tx,Rx)/422/485 (COM2)
• 4 x USB 2.0
• 4 x USB 2.0, 1 x Mini PCIe full size, 1 x SIM slot
• 1 x COM RS-232, 2 x USB 2.0
• 2 x COM RS-422/485
• 2 x COM RS-422/485 with isolated
• 2 x CAN
• 1 x COM RS-232, 2 x USB2.0, 1 x Power Button
• 1 x GbE LAN, 2 x USB 2.0
• Backup battery 21W/10.8V/1.95Ah, (Li-ion) 3S1P, operating temperature 0~50 C°
• 1 x POE 45W IEEE802.3at af compliant/RJ-45 connector/input 48V/output 12V, 2 x USB 2.0
• 1 x POE 45W IEEE802.3at af compliant/RJ-45 connector/input 48V/output 12V, 2 x USB 2.0
• High Brightness 1,000 nits
