CPU	LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)
Chipset	Intel® Q170
System Memory	2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
BIOS	AMI
COM	4 x RS-232/422/485
USB	6 x USB 3.0 2 x USB 2.0
Ethernet	4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
Display	2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b) 1 x DisplayPort
Digital I/O	32-channel programmable DI/DO
Audio	Mic-in/Line-out
Storage	2 x 2.5" SATA HDD with RAID 0&1 1 x CFast™ 1 x mSATA
Expansion	2 x Full-size PCI Express Mini Card (USB + PCI Express signal) 1 x SIM slot
Others	4 x SMA type connector opening for antenna 1 x 9~36VDC power input connector 1 x ATX power switch 1 x Remote power switch 1 x AT/ATX quick switch 1 x Reset button
Power Supply	9 - 36VDC
Watchdog Timer	255 levels, 1 ~255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F) (with W.T. SSD, CPU TDP 35W)
Relative Humidity	10% ~ 95% , non-condensing
Vibration	3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions)
Dimensions (W x D x H)	280 x 190 x 70 mm (11.02” x 7.48” x 2.75”)
Weight (net/gross)	3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
Certificate	CE
EOS Support	WE8S, WES7, Win10 IoT, Linux
Mounting	Wall mount DIN-rail

Number of articles found:

Teollisuustietokoneet

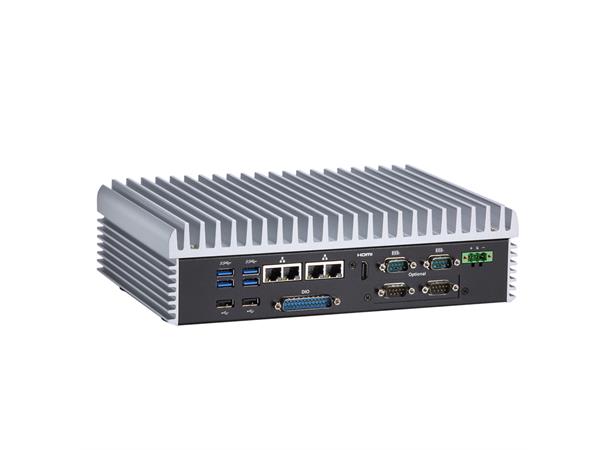

eBOX670-891-FL-DC

Q170, 7th/6th gen Core, 4x Lan, 9-36VDC

Product nr: 121293

CPU	LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)
Chipset	Intel® Q170
System Memory	2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
BIOS	AMI
COM	4 x RS-232/422/485
USB	6 x USB 3.0 2 x USB 2.0
Ethernet	4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
Display	2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b) 1 x DisplayPort
Digital I/O	32-channel programmable DI/DO
Audio	Mic-in/Line-out
Storage	2 x 2.5" SATA HDD with RAID 0&1 1 x CFast™ 1 x mSATA
Expansion	2 x Full-size PCI Express Mini Card (USB + PCI Express signal) 1 x SIM slot
Others	4 x SMA type connector opening for antenna 1 x 9~36VDC power input connector 1 x ATX power switch 1 x Remote power switch 1 x AT/ATX quick switch 1 x Reset button
Power Supply	9 - 36VDC
Watchdog Timer	255 levels, 1 ~255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F) (with W.T. SSD, CPU TDP 35W)
Relative Humidity	10% ~ 95% , non-condensing
Vibration	3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions)
Dimensions (W x D x H)	280 x 190 x 70 mm (11.02” x 7.48” x 2.75”)
Weight (net/gross)	3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
Certificate	CE
EOS Support	WE8S, WES7, Win10 IoT, Linux
Mounting	Wall mount DIN-rail
