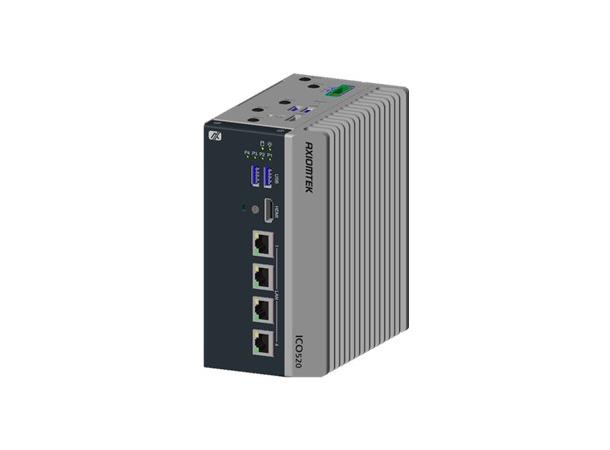

ICO520

The Axiomtek ICO520 is a fan-less, DIN-rail mounted embedded system powered by 12th Gen Intel® Core™ or Celeron® processors (Alder Lake-P). It is designed for rugged, space-constrained industrial environments, offering advanced connectivity, wide voltage input, and extreme temperature operation — ideal for automation, edge computing and industrial IoT gateway deployments.

Key Features

• Processor: Intel® Core™ i7-1265UE, i5-1245UE, i3-1215UE or Intel® Celeron® 7305E
• Memory: 1 × DDR4-3200 SO-DIMM, up to 32 GB
• Ethernet: 4 × isolated 2.5 GbE LAN ports
• Display Outputs: 2 × HDMI
• USB Ports: 4 × USB 3.x ports (Type-A)
• Serial Ports: 4 × isolated RS-232/422/485 (in advanced model)
• Digital I/O: Isolated 8-in / 8-out DIO (in advanced model)
• Storage & Expansion: 1 × internal 2.5? SATA drive bay, support for M.2 & mSATA slots, Mini PCIe expansion including SIM slots
• Power Input: 9 to 36 V DC (typical 12/24 V) with OVP/UVP/OCP protection
• Operating Temperature: –40 °C to +70 °C (with suitable configuration)
• Construction & Mounting: Extruded aluminum and heavy-duty steel chassis, IP40 rating; supports DIN-rail and wall mounting
• Certifications & Reliability: Supports TPM 2.0; rated for vibration/shock in industrial use
