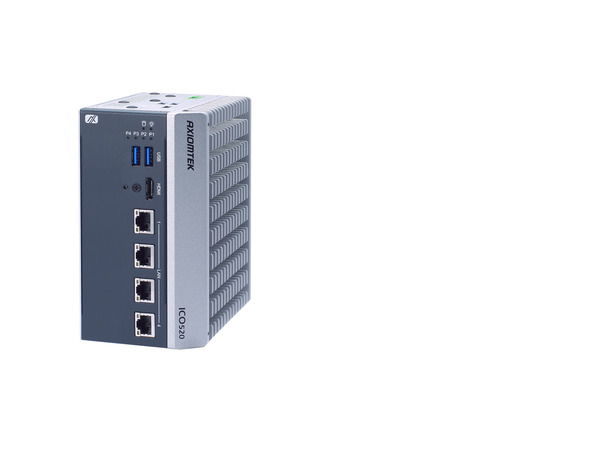

ICO520-ALD3-AS DIN-rail Box PC

i3-1215UE/4x LAN/9-36VDC

Product nr: 137146
278458
DatasheetProduct
CPU
  • Intel® Core™ i3-1215UE (1.2GHz/6C/15W)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR4-3200 SO-DIMM, up to 32GB
COM
  • N/A
USB
  • 4 x USB 3.1
Ethernet
  • 4 x RJ-45 isolated 2.5 GbE LAN (Intel® i226-IT)
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • N/A
Display
  • 2 x HDMI
Expansion
  • 1 x M.2 Key B 3050/3052 slot: PCIe/USB (for 5G/Wi-Fi)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: PCIe/USB (for LTE/Wi-Fi)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB/SATA (for Wi-Fi/mSATA)
  • 3 x SIM slot (1 for M.2; 2 for full-size PCI Express Mini Card)
Storage
  • 1 x Internal 2.5” SATA Drive
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x M.2 (PCIe Gen4 x4): NVMe (2242/2280) (optional)
Others
  • TPM 2.0
  • 5 x Antenna opening
Power
  • 1 x Terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
  • Cold boot at -40°C
Relative Humidity
  • 10% to 95%
Vibration
  • 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions
(W x D x H)
  • 83 x 110 x 155 mm (3.27" x 4.33" x 6.10")
Weight (net/gross)
  • Full: 1.75 kg (3.86 lb)
  • Simplified: 1.65 kg (3.84 lb)
Certifications
  • CE (Class A), FCC (Class A)
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • N/A
Mounting
  • DIN-rail
  • Wall Mounting
