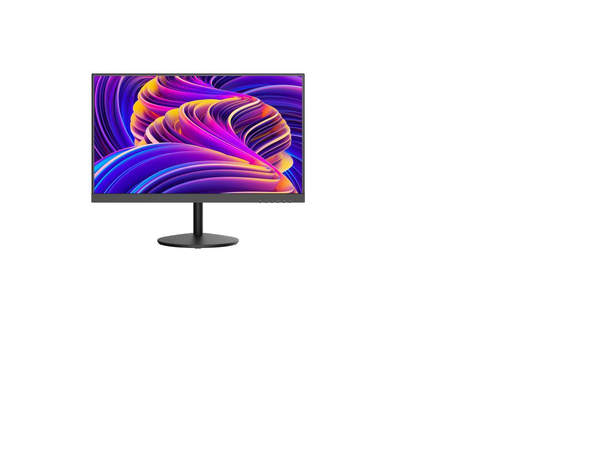

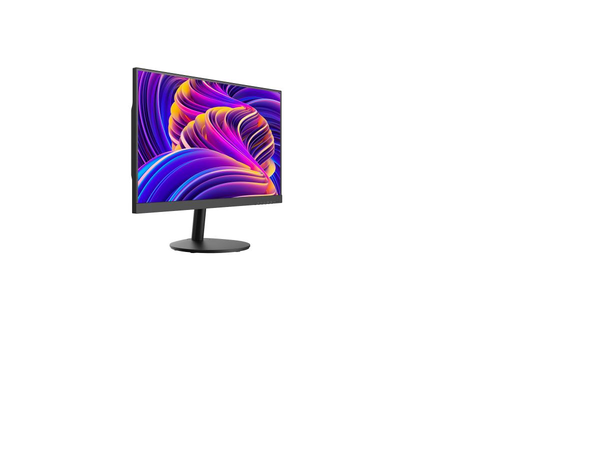

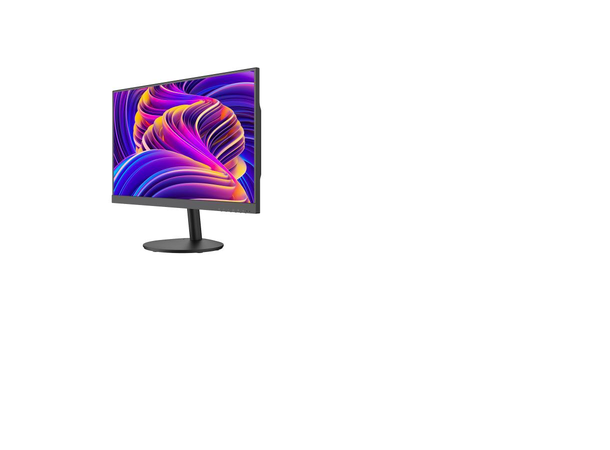

Hikvision DS-D5222F2-1V1S

The Hikvision DS-D5222F2-1V1S is a 21.45-inch FHD monitor designed for reliable 24/7 operation. It features an ultra-wide viewing angle and advanced eye care technology, making it ideal for various display applications.

Key Features

• High-Quality Imaging: FHD display with a resolution of 1920 × 1080, providing clear and vibrant visuals.
• Ultra-Wide Viewing Angle: 178° viewing angle ensures consistent image quality from different perspectives.
• Eye Care: Low blue light design reduces eye strain during prolonged use.
• 3D Noise Reduction: Enhances image clarity by reducing noise.
• Dual Interface: Supports HDMI, VGA, and CVBS inputs, offering flexibility and ease of use.
• Built-in Speaker: Integrated speaker for convenient audio output.

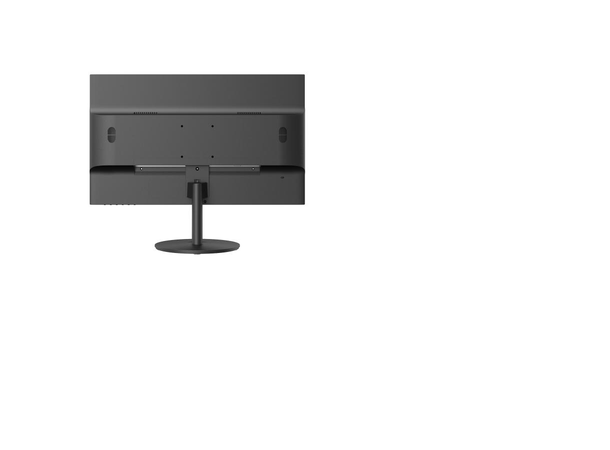

• VESA Mount Compatibility: Supports VESA wall mount for versatile installation options.

Hikvision DS-D5222F2-1V1S Specifications

Display

• Screen Size: 21.45 inch
• Resolution: 1920 × 1080
• Brightness: 250 cd/m²
• Color Depth: 8 bit
• Contrast Ratio: 3000:1
• Viewing Angle: 178° (H)/178° (V)
• Response Time: 6.5 ms
• Refresh Rate: Max. 75 Hz, Typ. 60 Hz

Interface

• Video & Audio Input: HDMI 1.4 × 1, VGA × 1, CVBS × 1, Audio IN × 1
• Video & Audio Output: Speaker (2W 8O) × 2
• Data Transmission Interface: USB 2.0 × 1

Power

• Power Supply: 100 to 240 VAC, 50/60 Hz
• Power Consumption: = 25 W
• Standby Consumption: = 0.5 W

Working Environment

• Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Working Humidity: 10% to 80% RH (Non-Condensing)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Storage Humidity: 5% to 90% RH (Non-Condensing)

General

• Casing Material: Plastic
• VESA: 75 mm × 75 mm (4 × M4 × 6 mm)
• Product Dimensions (With base): 492.36 mm × 403.93 mm × 209.99 mm
• Product Dimensions (Without base): 492.36 mm × 289.68 mm × 41.88 mm
• Package Dimensions: 600 mm × 400 mm × 115 mm
• Net Weight: 2.65 ± 0.5 kg
• Gross Weight: 3.9 ± 0.5 kg
• Accessories: Monitor, Base component, AC power cable (1.5 m), HDMI cable (1.5 m), User manual, Multilingual manual
