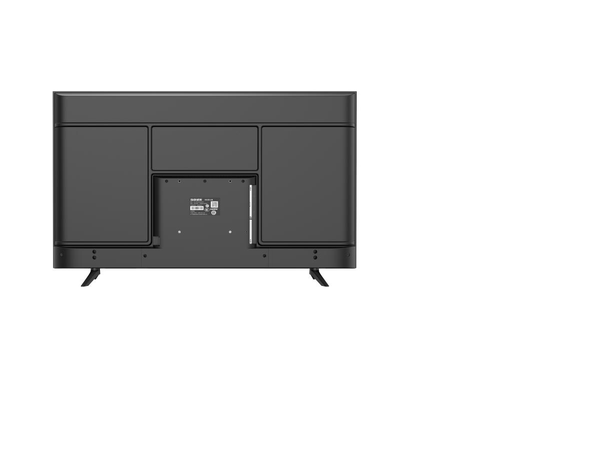

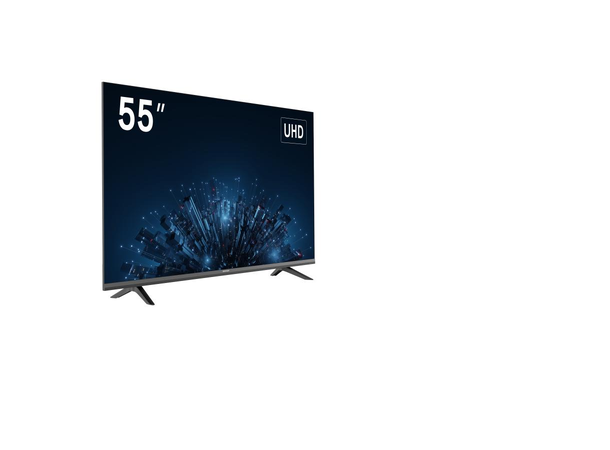

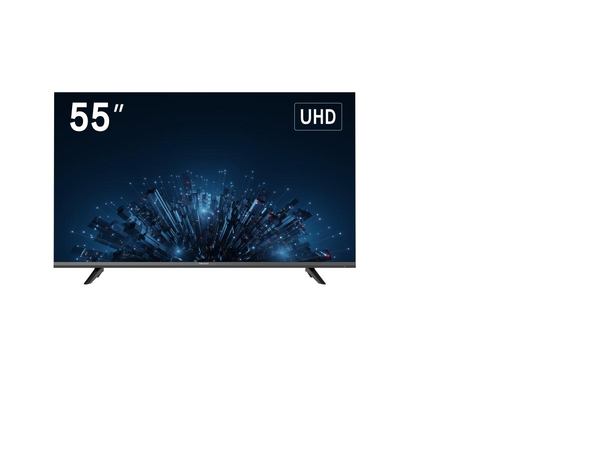

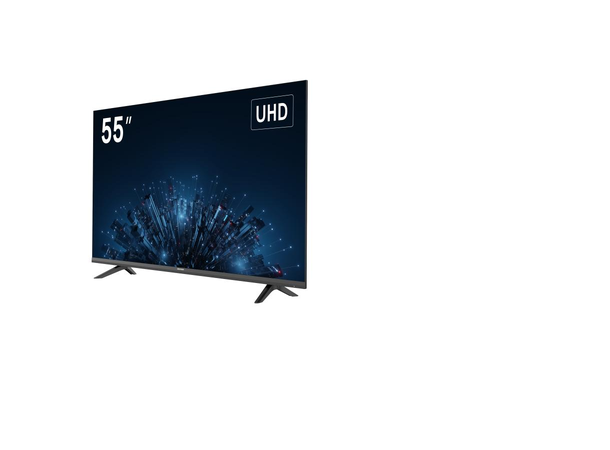

Hikvision DS-D5055U3-1V0S

The Hikvision DS-D5055U3-1V0S is a 55-inch UHD VA monitor designed for high-quality imaging and reliable 24/7 operation. It features an ultra-wide viewing angle and advanced eye care technology, making it ideal for various display applications.

Key Features

• High-Quality Imaging: UHD display with a resolution of 3840 × 2160, providing clear and vibrant visuals.
• Ultra-Wide Viewing Angle: 178° viewing angle ensures consistent image quality from different perspectives.
• Eye Care: Low blue light design reduces eye strain during prolonged use.
• 3D Noise Reduction: Enhances image clarity by reducing noise.
• Dual Interface: Supports HDMI and USB inputs, offering flexibility and ease of use.
• Built-in Speaker: Integrated speaker for convenient audio output.
• VESA Mount Compatibility: Supports VESA wall mount for versatile installation options.

Hikvision DS-D5055U3-1V0S Specifications

Display

• Screen Size: 55 inch
• Resolution: 3840 × 2160
• Brightness: 300 cd/m²
• Color Depth: 8 bit + FRC
• Contrast Ratio: 4000:1
• Viewing Angle: 178° (H)/178° (V)
• Response Time: 6.5 ms (typ)
• Refresh Rate: 60 Hz

Interface

• Video & Audio Input: HDMI × 3, USB 2.0 × 1
• Audio Output: Line Out × 1
• Control Interface: RS232 IN × 1, RS232 OUT × 1
• Speaker: 8 O 10 W × 2

Power

• Power Supply: 100 to 240 VAC, 50/60 Hz
• Power Consumption: = 120 W
• Standby Consumption: = 0.5 W

Working Environment

• Working Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Working Humidity: 20% to 90% RH (Non-Condensing)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Storage Humidity: 5% to 90% RH (Non-Condensing)

General

• Casing Material: Plastic
• VESA: 200 mm × 200 mm (4 × M6 × 10 mm)
• Product Dimensions (With base): 1225 mm × 773 mm × 242 mm
• Product Dimensions (Without base): 1225 mm × 708 mm × 80 mm
• Package Dimensions: 1356 mm × 828 mm × 161 mm
• Net Weight: 11.5 ± 0.5 kg
• Gross Weight: 16.01 ± 0.5 kg
• Accessories: Monitor, Base component, Power cable (1.5 m), HDMI cable (1.5 m), User manual, Multilingual manual, Remote control, Screw × 6
