Hikvision DS-PDPC12PF-EG2-WE(B)

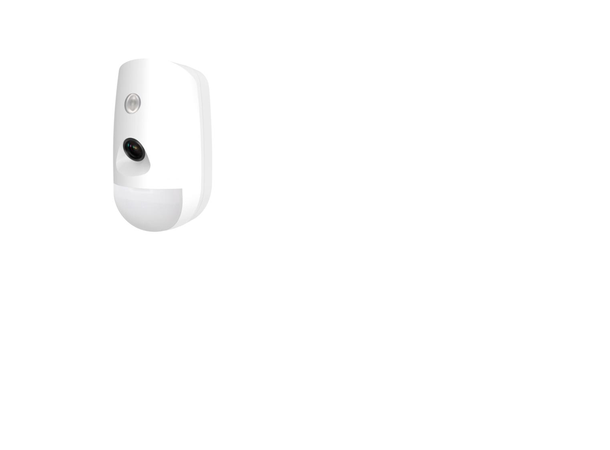

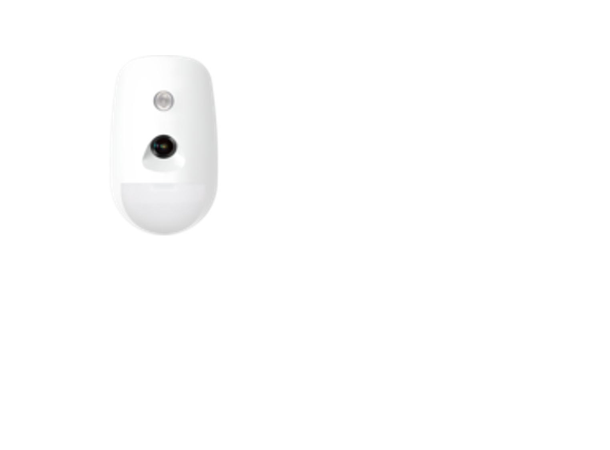

The Hikvision DS-PDPC12PF-EG2-WE(B) is a wireless PIR camera detector designed for the AX PRO alarm system. It combines passive infrared detection with visual verification, offering reliable motion detection, pet immunity, and 24/7 color imaging for enhanced indoor security.

Key Features

• Dual Detection: Combines PIR motion detection with built-in camera for video verification.
• Pet Immunity: Ignores animals up to 30 kg to reduce false alarms.
• Smart Environmental Control: Advanced digital signal processing and 3D optics for accurate detection.
• 24/7 Color Imaging: Integrated white light for full-color snapshots even in low light.
• Wide Coverage: 12 m detection range with 90° angle and 52 detection zones.
• Secure Wireless Transmission: CAM-X protocol with AES-128 encryption and up to 800 m range (open space).
• Long Battery Life: Up to 6 years with CR123A × 3 batteries under typical usage.

Specifications

• Detection Method: Passive Infrared, Video Verification
• Detection Range: 12 m
• Detection Angle: 90°
• Detection Zones: 52
• Detectable Speed: 0.3 to 2 m/s
• Sensitivity: Auto, High, Pet
• White Light Filter: 6500 lux
• IR Fill Light: White light, up to 12 m
• Image Resolution: 640×480, 320×240, 160×120 (JPEG)
• Transmission Frequency: 868 MHz
• Transmission Range: Up to 800 m (open area)
• Battery Type: CR123A × 3
• Battery Life: Up to 6 years
• Operating Temperature: -10 °C to 55 °C
• Humidity: 10% to 90% RH
• Dimensions: 72.2 mm × 120.5 mm × 56.7 mm
• Weight: 220 g
• Mounting Height: 1.8 to 2.4 m
• Mounting Method: Wall

Hikvision offers free IVMS-4200 and Hik-Connect apps for managing and monitoring AX PRO alarm systems. These tools provide real-time alerts, remote control, and integration with other Hikvision devices for a unified security experience.
