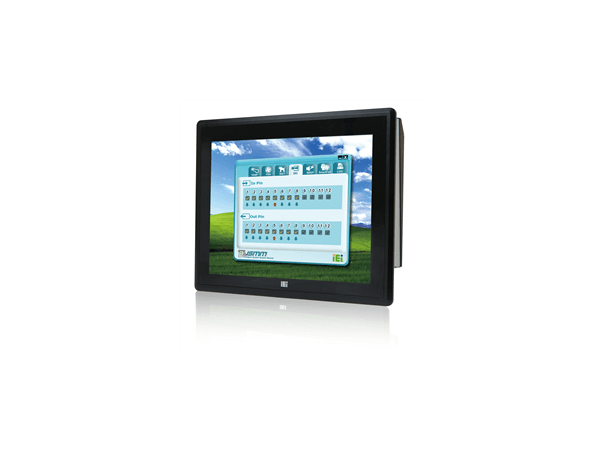

PPC-F15AA-H81i-P/4G/R-R20 15" Panel PC

Pentium G3420/4GB ram/Res.touch

Product nr: 118529
PPC-F15AA-H81i-P/4G/R-R20 15" Panel PC Pentium G3420/4GB ram/Res.touch
Datablad
Spec ItemDescription
Display
Backlight MTBF(hrs)50000
Brightness(cd/m2)400
Contrast Ratio29.1673611111111
LCD Size15”(4:3)
Max Resolution1024 (W) x 768 (H)
Environment
Humidity10% to 95% (non-condensing)
IP LevelIP 65 compliant front panel
Operating Temperature-10°C~50°C (14°F~122°F)
Storage Temperature-20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches2 x RJ-45 LAN Port
2 x USB 3.0
4 x USB 2.0
1 x HDMI output
4 x RS-232
1 x RS-422/485
1 x VGA output
1 x AC/DC power plug (DC model is by build to order manufacturing)
1 x AT/ATX switch
1 x Clear CMOS
1 x Reset button
1 x Power switch
LCD
LCD Color16.2M
Pixel Pitch (mm)0.29 x 0.29
Viewing Angle (H-V)160° / 140°
Physical Characteristics
Cutout Dimensions285.6 x 361.1
Dimensions (LxWxH) (mm)303 x 378.5 x 65.7
Power
Power adapter12V DC
Touch
Touch Controller5-wire resistive type single touch window (Penmount 6000), 3H
Touch Screen2-point projected capacitive touch window (EETI EXC7200), 6H
Weight
Weight5.6/ 8.3
