Spec Item	Description
Communication
Bluetooth	Bluetooth V4.0
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 3W + 3W (internal speaker)
Audio Codec	ALC892
Ethernet	2x PCIe GbE by Intel® i211 controller
RAM	One 260-pin 2133MHz single-channel, 4GB DDR4L SO-DIMM pre-installed (system max. 8GB)
LCD
Backlight MTBF	50000 (LED backlight)
Brightness (cd/m2)	500
Contrast Ratio	700:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1024 x 768 (4:3)
Size	12.1""
Viewing Angle (H-V)	160º / 160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power consumption	12V@6A
System
CPU	6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage	2.5” SATA 3Gb/s HDD bay M.2 M key PCIe (2230) mSATA slot (PCIe/mSATA/USB)
Touch
Touch Controller	EETI EXC3180
Touch Screen	Projected capacitive type with USB interface (anti-UV)
Weight
Weight	3/5.03
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x HDMI
	2 x LAN(GbE)
	1 x Power In
	1 x Power Switch
	1 x Reset Button
	1 x RS-232(DB-9 (RI/5V/12V))
	1 x RS-422/485(DB-9 (RI/5V/12V))
	2 x USB 2.0
	2 x USB 3.0

Ordering Info.

Item No.	Description
AFL3-12C-ULT3-C/PC/4G-R10	12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3855U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10
AFL3-12C-ULT3-i5/PC/4G-R10	12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10

Package Contents
- 4 x Round head machine screw
- 4 x Pan head machine screw
- 1 x Power cord
- 1 x Power adapter 63040-010096-100-RS

Number of articles found:

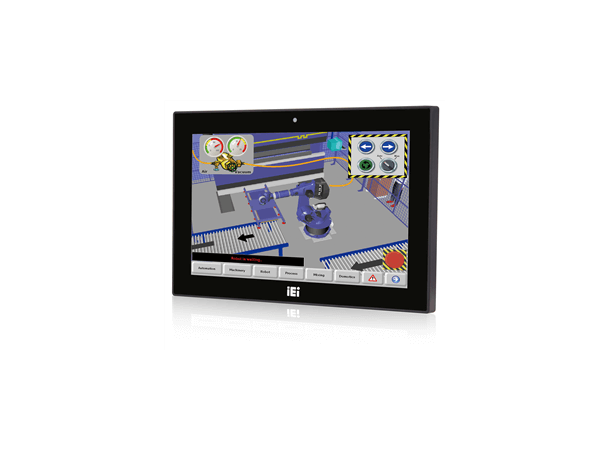

AFL3-12C-ULT3-i5/PC/4G-R12 12" Panel PC

Product nr: 125785

Spec Item	Description
Communication
Bluetooth	Bluetooth V4.0
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 3W + 3W (internal speaker)
Audio Codec	ALC892
Ethernet	2x PCIe GbE by Intel® i211 controller
RAM	One 260-pin 2133MHz single-channel, 4GB DDR4L SO-DIMM pre-installed (system max. 8GB)
LCD
Backlight MTBF	50000 (LED backlight)
Brightness (cd/m2)	500
Contrast Ratio	700:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1024 x 768 (4:3)
Size	12.1""
Viewing Angle (H-V)	160º / 160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power consumption	12V@6A
System
CPU	6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage	2.5” SATA 3Gb/s HDD bay M.2 M key PCIe (2230) mSATA slot (PCIe/mSATA/USB)
Touch
Touch Controller	EETI EXC3180
Touch Screen	Projected capacitive type with USB interface (anti-UV)
Weight
Weight	3/5.03
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x HDMI
	2 x LAN(GbE)
	1 x Power In
	1 x Power Switch
	1 x Reset Button
	1 x RS-232(DB-9 (RI/5V/12V))
	1 x RS-422/485(DB-9 (RI/5V/12V))
	2 x USB 2.0
	2 x USB 3.0

Item No.	Description
AFL3-12C-ULT3-C/PC/4G-R10	12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3855U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10
AFL3-12C-ULT3-i5/PC/4G-R10	12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10

Package Contents
- 4 x Round head machine screw
- 4 x Pan head machine screw
- 1 x Power cord
- 1 x Power adapter 63040-010096-100-RS
