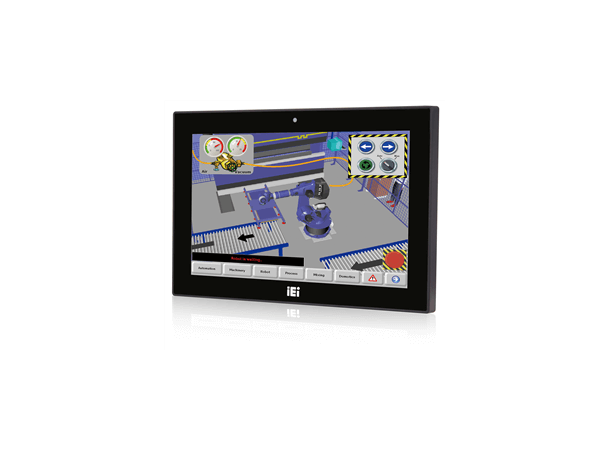

AFL3-W15C-ULT3-i5/PC/4G-R13 15,6"PanelPCIEI/i5-6300U/4GB/PCTouch

Spec Item	Description
Communication
Bluetooth	Bluetooth v4.0
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 64 compliant front panel
Operating Temperature	-20°C~50°C
Safety & EMC	CE / FCC
Storage Temperature	-20°C~60°C
I/O Interface
Audio	AMP 3W + 3W (internal speakers)
Audio Codec	ALC892
Ethernet	2 x Intel® I211 PCIe GbE controller
I/O Ports and Switches	1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
RAM	Two 260-pin 2133/1867 MHz dual-channel DDR4 SO-DIMMs (system max. 32 GB)
LCD
Backlight MTBF	50000 (LED backlight)
Brightness (cd/m2)	400
Contrast Ratio	500:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1366 x 768 (16:9)
Size	15.6""
Viewing Angle (H-V)	170º / 160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
OSD Function	Software OSD
System Cooling	Fanless
Physical Characteristics
Color	Black C
Construction Front Panel	PC + ABS Plastic
Dimensions (LxWxH) (mm)	396 x 250 x 64
Mounting	Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Net Weight	4.5Kg
Power
Power consumption	12V@6A (Intel® Core™ i5-6300U CPU with 4GB DDR4 2133 MHz DDR4 memory)
System
Cooling method / System Fan	Fanless
CPU	6th Generation Intel® Core™ i5 and Celeron® on-board processor
Storage	1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
Touch
Touch Controller	PenMount DMC9000/ EETI EXC7200
Touch Screen	5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
Weight
Weight	4.5/6.5Kg
I/O Interface
I/O Interface	1 x RS-232(DB-9 (RI/5V/12V))
	1 x RS-422/485(DB-9 (RI/5V/12V))
	4 x USB 3.0
	1 x HDMI(output)
	2 x LAN(Gbe)
	1 x Reset Button
	1 x Power In(9-30V lockable power jack)
	1 x AT/ATX switch
	1 x Power Switch
