LCD Display	21,5” (16:9)
Resolution	1920 (W) x 1080 (H)
Brightness	350 cd/m²
Contrast Ratio	1000:1
LCD Color	16.7M
Viewing Angle (H-V)	170°/170°
Backlight MTBF	50000 hours
SOC	Intel Core i3-1220P (on-board)
Display Output	1 x HDMI
Memory	Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM (1x8GB standard max. 64GB)
Touchscreen	Multi-point projected capacitive type

Touch Controller	Projected capacitive type: EXC3160
Storage	1 x 2.5" 6Gb/s SATA HDD bay
Ethernet	LAN1: Intel® I225 LM (support Intel AMT) + LAN2: Intel® I225V
Expansion	2 x M.2 2280 M-key (PCIe x4)
	1 x M.2 3080 B-key (PCIe x1 or SATA) support IPMI function
Mounting	Panel, Wall, Stand and Arm VESA 75 /100mm
Construction Material	PC + ABS Plastic
Enclosure Color	Black C
I/O Ports	1 x RS-232 by DB9
	1 x RS-232/422/485 w/ AFC by DB9
	2 x 2.5GbE LAN
	1 x RJ45 for IPMI
	4 x USB 3.2 Gen1
	1 x HDMI output
	1 x 12V DC jack
	1 x Power button
	1 x Reset button
	1 x Clear CMOS button
	1 x AT/ATX switch
Power Supply	12V DC
Thermal Solution	Fanless
Operating Temperature
(with air flow)	0ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Humidity	10% ~ 95%@40ºC, non-condensing
IP Level	IP 64 compliant front panel
Safety and EMC	CE, FCC Class A, UKCA
ErP	ErP 2009/125/EC
Dimensions	530.27 x 338.27 x 67.8

Number of articles found:

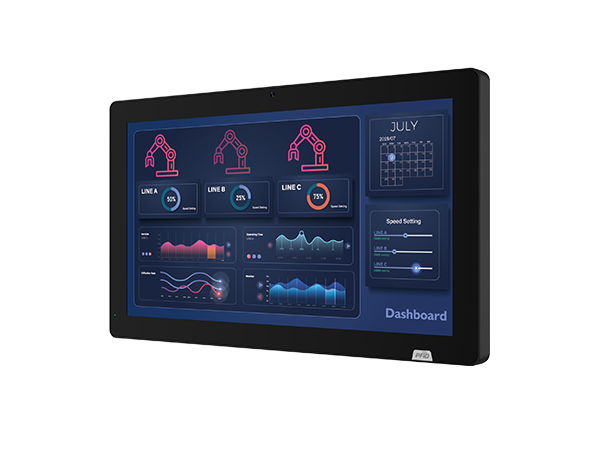

AFL3-W22C-ADLP-i3/8G-R10 21,5" Panel PC

i3-1220P/8GB ram/PCAP touch

Product nr: 137180

LCD Display	21,5” (16:9)
Resolution	1920 (W) x 1080 (H)
Brightness	350 cd/m²
Contrast Ratio	1000:1
LCD Color	16.7M
Viewing Angle (H-V)	170°/170°
Backlight MTBF	50000 hours
SOC	Intel Core i3-1220P (on-board)
Display Output	1 x HDMI
Memory	Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM (1x8GB standard max. 64GB)
Touchscreen	Multi-point projected capacitive type

Touch Controller	Projected capacitive type: EXC3160
Storage	1 x 2.5" 6Gb/s SATA HDD bay
Ethernet	LAN1: Intel® I225 LM (support Intel AMT) + LAN2: Intel® I225V
Expansion	2 x M.2 2280 M-key (PCIe x4)
	1 x M.2 3080 B-key (PCIe x1 or SATA) support IPMI function
Mounting	Panel, Wall, Stand and Arm VESA 75 /100mm
Construction Material	PC + ABS Plastic
Enclosure Color	Black C
I/O Ports	1 x RS-232 by DB9
	1 x RS-232/422/485 w/ AFC by DB9
	2 x 2.5GbE LAN
	1 x RJ45 for IPMI
	4 x USB 3.2 Gen1
	1 x HDMI output
	1 x 12V DC jack
	1 x Power button
	1 x Reset button
	1 x Clear CMOS button
	1 x AT/ATX switch
Power Supply	12V DC
Thermal Solution	Fanless
Operating Temperature
(with air flow)	0ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Humidity	10% ~ 95%@40ºC, non-condensing
IP Level	IP 64 compliant front panel
Safety and EMC	CE, FCC Class A, UKCA
ErP	ErP 2009/125/EC
Dimensions	530.27 x 338.27 x 67.8
