LCD Display	12,1” (4:3)
Resolution	1024 (W) x768 (H)
Brightness	500 cd/m²
Contrast Ratio	700:1
LCD Color	16.2M
Viewing Angle (H-V)	160°/140°
Backlight MTBF	50000 hours
SOC	Intel Core i7-1260P (on-board)
Display Output	1 x HDMI
Memory	Dual-channel 8GB LPDDR4x on-board
Touchscreen	Multi-point projected capacitive type
	anti-UV / anti-glare coating,support gloves
Touch Controller	EETI 80
Storage	1 x M.2 M key 2242 (PCIe Gen4 x4)
	1 x M.2 M key 2280 (PCIe Gen4 x4)
Ethernet	LAN1: Intel® I225V 2.5GbE controller
	LAN2: Intel® I225-LM 2.5GbE controller (support Intel® AMT)
Mounting	VESA 100, Wall, Stand and Arm
Construction Material	Aluminum front cover and sheet metal rear cover
Enclosure Color	Silver+Black
I/O Ports	2 x RS-232 by DB9
	2 x RS-232/422/485 by DB9
	2 x 2.5GbE LAN
	2 x USB 3.2 Gen2
	2 x USB 3.2 Gen1
	1 x USB 2.0
	1 x HDMI output
	1 x 12V DC Jack
	1 x Power button
	1 x Reset button
	1 x AT/ATX switch
Power Supply	12V DC
Thermal Solution	Fanless
Operating Temperature
(with air flow)	-10ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Humidity	10% ~ 95%@40ºC, non-condensing
IP Level	IP 64 compliant front panel
Operation Vibration	MIL-STD-810G 514.6C-1 (with SSD)
Operation Shock	Half-sine wave shock 5G; 11ms; 100 shocks per axis
Safety and EMC	CE, FCC Class A, UKCA
ErP	ErP 2009/125/EC
Net weight	2,38kg
Dimensions(H x W x D) (mm)	280.36 x 220.92 x 57.80

Number of articles found:

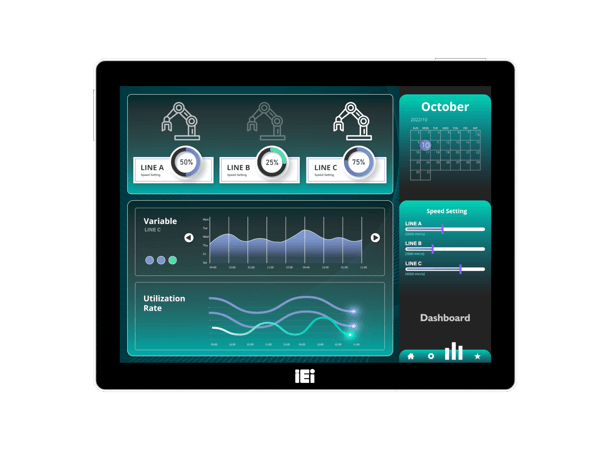

AFL4-121-ADLP-i7/8G-R10 12.1" Panel PC

i7-1260P/8GB ram/PCAP Touch

Product nr: 137188

LCD Display	12,1” (4:3)
Resolution	1024 (W) x768 (H)
Brightness	500 cd/m²
Contrast Ratio	700:1
LCD Color	16.2M
Viewing Angle (H-V)	160°/140°
Backlight MTBF	50000 hours
SOC	Intel Core i7-1260P (on-board)
Display Output	1 x HDMI
Memory	Dual-channel 8GB LPDDR4x on-board
Touchscreen	Multi-point projected capacitive type
	anti-UV / anti-glare coating,support gloves
Touch Controller	EETI 80
Storage	1 x M.2 M key 2242 (PCIe Gen4 x4)
	1 x M.2 M key 2280 (PCIe Gen4 x4)
Ethernet	LAN1: Intel® I225V 2.5GbE controller
	LAN2: Intel® I225-LM 2.5GbE controller (support Intel® AMT)
Mounting	VESA 100, Wall, Stand and Arm
Construction Material	Aluminum front cover and sheet metal rear cover
Enclosure Color	Silver+Black
I/O Ports	2 x RS-232 by DB9
	2 x RS-232/422/485 by DB9
	2 x 2.5GbE LAN
	2 x USB 3.2 Gen2
	2 x USB 3.2 Gen1
	1 x USB 2.0
	1 x HDMI output
	1 x 12V DC Jack
	1 x Power button
	1 x Reset button
	1 x AT/ATX switch
Power Supply	12V DC
Thermal Solution	Fanless
Operating Temperature
(with air flow)	-10ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Humidity	10% ~ 95%@40ºC, non-condensing
IP Level	IP 64 compliant front panel
Operation Vibration	MIL-STD-810G 514.6C-1 (with SSD)
Operation Shock	Half-sine wave shock 5G; 11ms; 100 shocks per axis
Safety and EMC	CE, FCC Class A, UKCA
ErP	ErP 2009/125/EC
Net weight	2,38kg
Dimensions(H x W x D) (mm)	280.36 x 220.92 x 57.80
