LCD Display	8” (16:10)
Resolution	1280 (W) x 800 (H)
Brightness	420 cd/m²
Contrast Ratio	700:1
LCD Color	16.7M
Viewing Angle (H-V)	170°/170°
Backlight MTBF	30000 hours
SOC	Intel Celeron J6412

Memory	Dual channel 8GB LPDDR4x on-board
Touchscreen	Multi-point projected capacitive with USB interface
	anti-UV / anti-glare coating
Touch Controller	EETI EXC 81 Series
Storage	1 x M.2 M key 2242 (PCIe Gen3 x1 + SATA)

Ethernet	LAN1: Intel® I225-V/I226-V 2.5GbE controller

Mounting	VESA 75, Wall, Stand and Arm
Construction Material	Aluminum die casting+SECC
Enclosure Color	Silver+Black
I/O Ports	2 x RS-232 by DB9
	1 x 2.5GbE LAN
	2 x USB 3.2 Gen2
	1 x USB 2.0
	1 x HDMI output
	1 x 12V DC Jack
	1 x Power button
	1 x Reset button
	1 x AT/ATX switch
Power Supply	12V DC
Thermal Solution	Fanless
Operating Temperature
(with air flow)	-10ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Humidity	10% ~ 95%@40ºC, non-condensing
IP Level	IP 64 compliant front panel
Operation Vibration	MIL-STD-810G 514.6C-1 (with SSD)
Operation Shock	Half-sine wave shock 5G; 11ms; 100 shocks per axis
Safety and EMC	CE/EMC,UKCA; FCC, RED (Class A)
ErP	ErP 2009/125/EC
Dimensions(H x W x D) (mm)	201.4 x 138.9 x 38.28

Number of articles found:

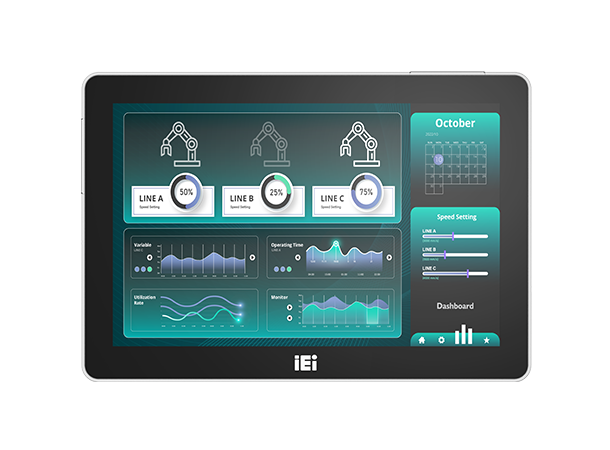

AFL4-W08-EHL-J1/8G-R10 8" Panel PC

J6412/8GB ram/PCAP Touch

Product nr: 137406

LCD Display	8” (16:10)
Resolution	1280 (W) x 800 (H)
Brightness	420 cd/m²
Contrast Ratio	700:1
LCD Color	16.7M
Viewing Angle (H-V)	170°/170°
Backlight MTBF	30000 hours
SOC	Intel Celeron J6412

Memory	Dual channel 8GB LPDDR4x on-board
Touchscreen	Multi-point projected capacitive with USB interface
	anti-UV / anti-glare coating
Touch Controller	EETI EXC 81 Series
Storage	1 x M.2 M key 2242 (PCIe Gen3 x1 + SATA)

Ethernet	LAN1: Intel® I225-V/I226-V 2.5GbE controller

Mounting	VESA 75, Wall, Stand and Arm
Construction Material	Aluminum die casting+SECC
Enclosure Color	Silver+Black
I/O Ports	2 x RS-232 by DB9
	1 x 2.5GbE LAN
	2 x USB 3.2 Gen2
	1 x USB 2.0
	1 x HDMI output
	1 x 12V DC Jack
	1 x Power button
	1 x Reset button
	1 x AT/ATX switch
Power Supply	12V DC
Thermal Solution	Fanless
Operating Temperature
(with air flow)	-10ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Humidity	10% ~ 95%@40ºC, non-condensing
IP Level	IP 64 compliant front panel
Operation Vibration	MIL-STD-810G 514.6C-1 (with SSD)
Operation Shock	Half-sine wave shock 5G; 11ms; 100 shocks per axis
Safety and EMC	CE/EMC,UKCA; FCC, RED (Class A)
ErP	ErP 2009/125/EC
Dimensions(H x W x D) (mm)	201.4 x 138.9 x 38.28
