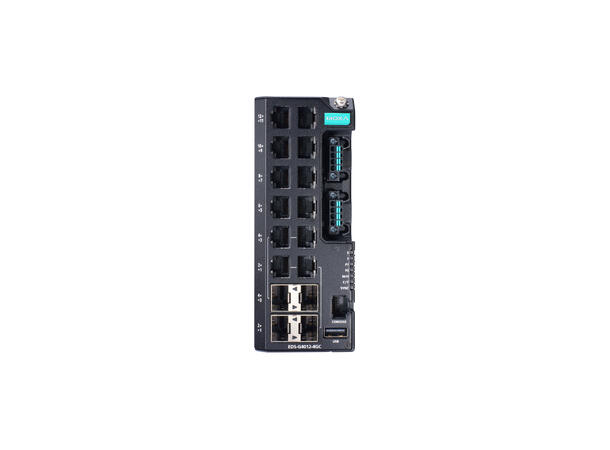

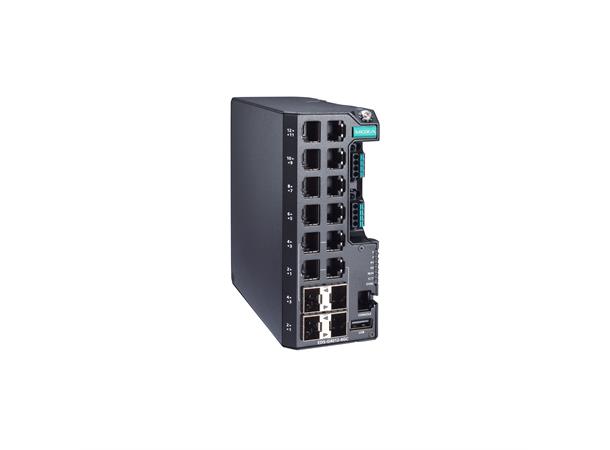

Moxa EDS-G4012-4GC-HV

The Moxa EDS-G4012-4GC-HV is an industrial-grade managed PoE Ethernet switch featuring 8 copper Gigabit ports and 4 combo ports (copper or fiber). It supports a high-voltage AC/DC power input (110/220 V) and is designed for industrial network deployments requiring flexibility and reliability.

Key Features

• Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 + 4 combo ports functioning as 10/100/1000 copper or 100/1000 SFP
• Standards & Switch Features: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad (LACP), 802.1Q VLAN, 802.1p QoS
• Redundancy & Protection: Turbo Ring v2, Turbo Chain, RSTP/STP, Ring Coupling, Dual-Homing
• PoE / Power Management: PoE support, overload and reverse polarity protection
• Power Input: Single supply: 110/220 V AC or DC, 88–300 VDC / 85–264 VAC
• Operating Temperature: –10?°C to 60?°C
• MAC Table & VLANs: 16K MAC entries, up to 256 VLANs, up to 512 IGMP groups
• Frame & Buffer: Jumbo frames support up to 9,216 bytes; 1 MB packet buffer
• Security & Management: ACL, 802.1X, HTTPS/SSL, SSH, RADIUS, TACACS+, SNMP v1/v2c/v3, RMON, private MIB
• Physical & Mechanical: Metal housing, DIN-rail mountable, dimensions approx. 55 × 140 × 122.5 mm, weight ~881.5 g
• Environmental & Certifications: IP40 enclosures, EMC per EN 55032/35 and IEC 61000 series, supports industrial cybersecurity standards (IEC?62443-4-2)
