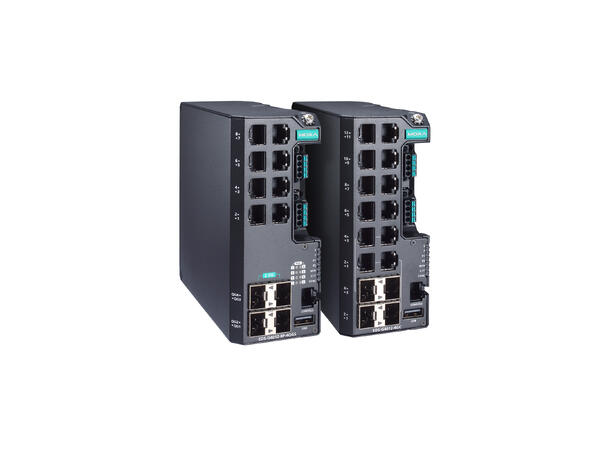

Moxa EDS-G4012-4GC-LV

The Moxa EDS-G4012-4GC-LV is an industrial-grade, full-Gigabit Layer?2 managed Ethernet switch offering 12 ports: 8 × 10/100/1000BaseT(X) RJ45 ports and 4 combo ports that support 10/100/1000BaseT(X) or 100/1000Base?SFP. With dual redundant 12/24/48?VDC inputs and an operating temperature range of –10?°C to 60?°C, it’s built for robust industrial networking in automation, process control, and infrastructure applications.

Key Features

• Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 + 4 combo ports (10/100/1000BaseT(X) or 100/1000Base SFP)
• Power Input: Dual redundant 12/24/48?VDC inputs (operating range 9.6–60?VDC)
• Operating Temperature: –10?°C to 60?°C
• Managed Layer?2 Features: IEEE?802.1Q VLAN, IGMP Snooping v1-v3, Link Aggregation (802.3ad), Jumbo frames up to 9?216 bytes
• Security & Access Control: IEEE?802.1X authentication, MAC filtering, ACL, secure protocols (HTTPS/SSL, SSH), RADIUS/TACACS+ support
• Housing & Mounting: Rugged metal enclosure, DIN-rail mountable for industrial deployments
