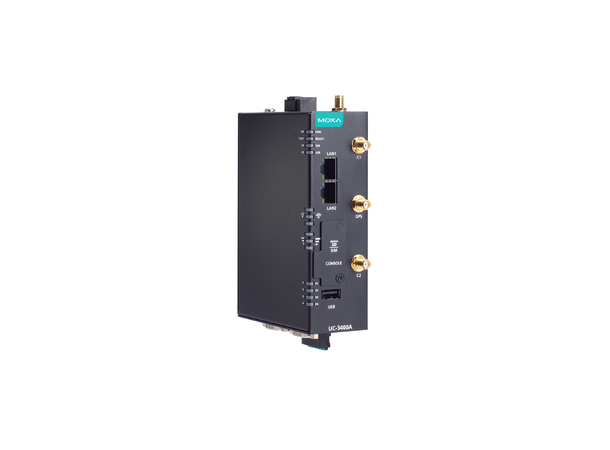

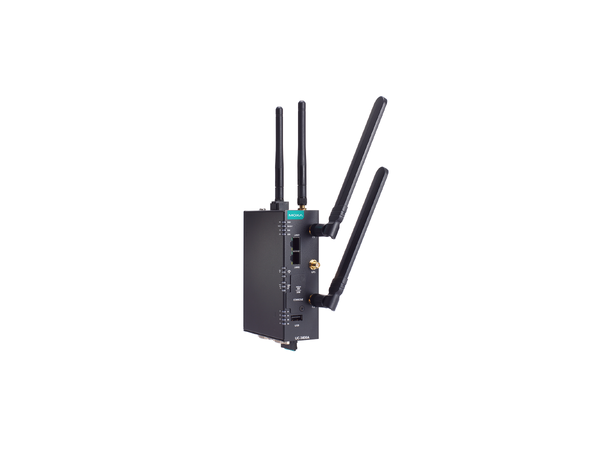

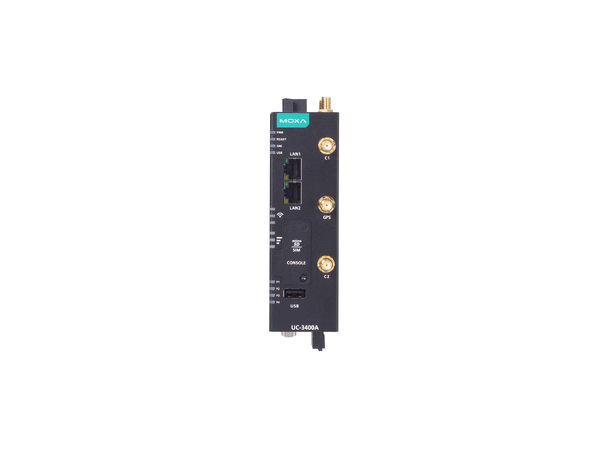

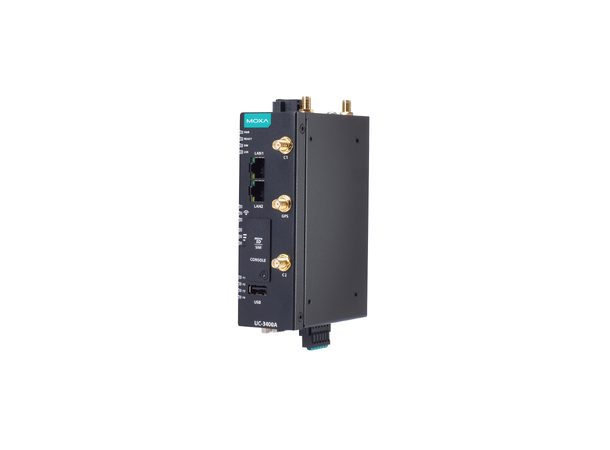

Moxa UC-3430A-T-LTE-WiFi

The Moxa UC-3430A-T-LTE-WiFi is a rugged, fanless Arm® Cortex®-A53 quad-core industrial computer designed for edge computing in demanding environments. It features built-in LTE Cat. 4 and Wi-Fi 6 connectivity, dual SIM support, and Moxa Industrial Linux for long-term reliability. The “-T” variant supports extended temperature ranges, making it ideal for outdoor and industrial applications requiring secure and uninterrupted wireless communication.

Key Features

• Processor: Arm Cortex-A53 quad-core 64-bit, 1.4 GHz
• Memory: 4 GB DDR4 RAM, 16 GB eMMC storage
• Operating System: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
• Ethernet: 2 x 10/100/1000 Mbps (RJ45)
• Serial Ports: 2 x RS-232/422/485 (DB9, software-selectable)
• USB: 1 x USB 2.0 (Type-A)
• Wireless Connectivity: LTE Cat. 4 module with dual nano SIM slots; Wi-Fi 6 (802.11ax)
• GPS: Integrated GPS/GLONASS/BeiDou/Galileo/QZSS
• Bluetooth: v5.3
• Security: TPM v2.0 module
• Power Input: 9 to 48 VDC
• Operating Temperature: -40 to 70°C
• Certifications: CE, FCC, UL, Class I Div 2, ATEX Zone 2
• Mounting: DIN-rail or wall-mountable
