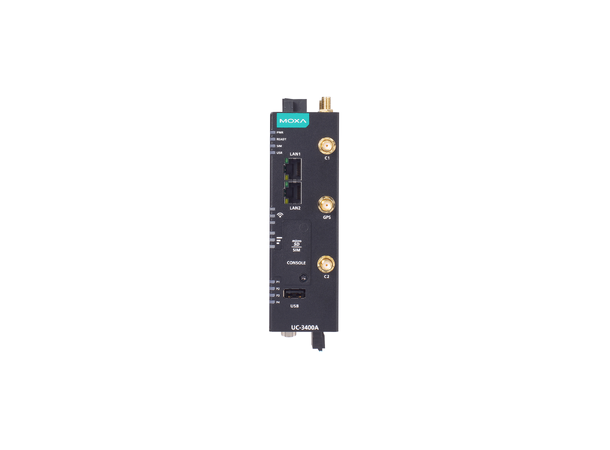

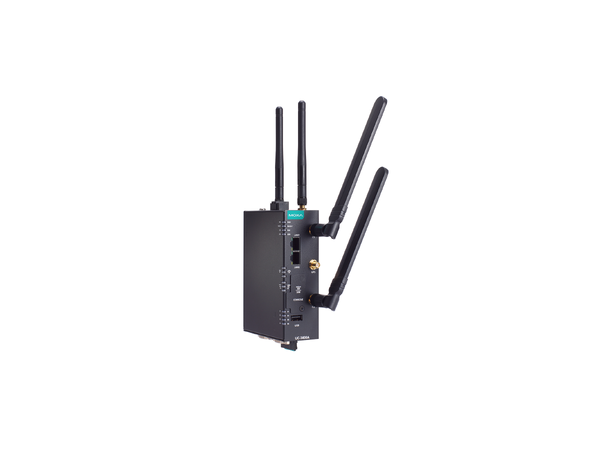

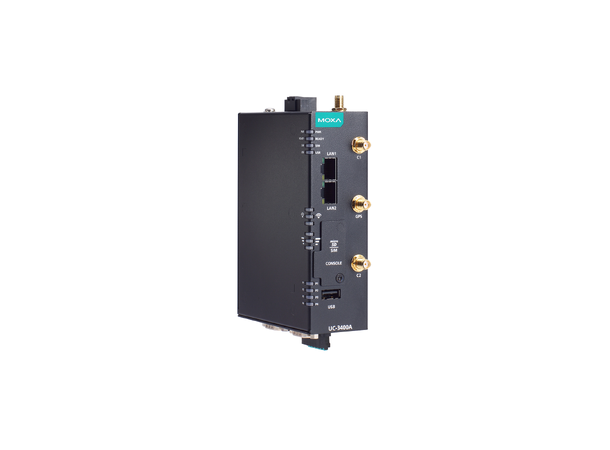

Moxa UC-3434A-T-LTE-WiFi

The Moxa UC-3434A-T-LTE-WiFi is a rugged, fanless Arm® Cortex®-A53 quad-core industrial computer designed for secure and reliable edge computing in harsh environments. Featuring built-in LTE Cat. 4 and Wi-Fi 6 connectivity, dual CAN ports, and Moxa Industrial Linux, it is ideal for IIoT applications such as remote monitoring, data acquisition, and predictive maintenance. The “-T” variant supports extended temperature ranges, making it suitable for outdoor and industrial deployments.

Key Features

• Processor: Arm Cortex-A53 quad-core 64-bit, 1.4 GHz
• Memory: 4 GB DDR4 RAM, 16 GB eMMC storage
• Operating System: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
• Ethernet: 2 x 10/100/1000 Mbps (RJ45)
• Serial Ports: 2 x RS-232/422/485 (DB9, software-selectable)
• CAN Ports: 2 x CAN 2.0 A/B with 2 kV isolation
• USB: 1 x USB 2.0 (Type-A)
• Wireless Connectivity: LTE Cat. 4 module with dual nano SIM slots; Wi-Fi 6 (802.11ax); Bluetooth v5.3
• GPS: Integrated GPS/GLONASS/BeiDou/Galileo/QZSS
• Security: TPM v2.0 module; IEC 62443-4-2 SL2 compliant
• Power Input: 9 to 48 VDC
• Operating Temperature: -40 to 70°C
• Certifications: CE, FCC, UL, Class I Div 2, ATEX Zone 2
• Mounting: DIN-rail or wall-mountable
