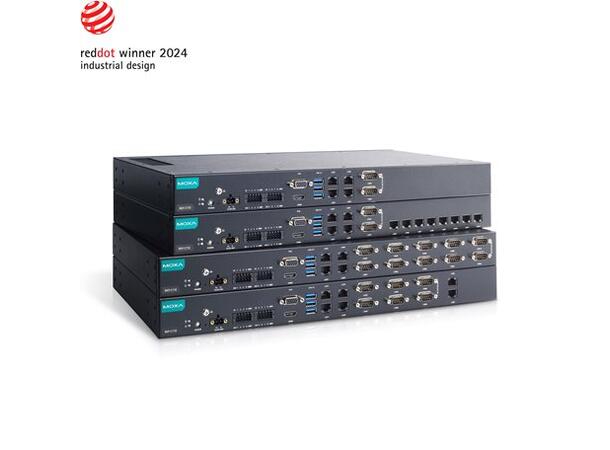

Moxa RKP-C110-C7-2L4C-T

The Moxa RKP-C110-C7-2L4C-T is a rugged, fanless 1U rackmount industrial computer designed for automation, transportation, and energy applications. Powered by an 11th Gen Intel® Core™ i7-1185G7E processor, it offers high-performance computing with rich I/O options including 6 LAN ports, 6 serial ports, and 8 digital inputs/outputs. With wide temperature tolerance, dual SSD slots, and TPM 2.0 security, it ensures reliable operation in harsh environments.

Key Features

• Processor: Intel® Core™ i7-1185G7E (Quad-core, 12M cache, 2.80 GHz)
• Memory: 8 GB DDR4 pre-installed (expandable up to 32 GB)
• Storage: 2 x 2.5" SATAIII SSD slots, RAID 0/1 support
• LAN Ports: 6 x 10/100/1000 Mbps RJ45
• Serial Ports: 6 x RS-232/422/485 (DB9 male, software selectable)
• USB Ports: 3 x USB 3.0 (Type-A)
• Digital I/O: 8 digital inputs, 8 digital outputs
• Video Output: 1 x HDMI 2.0b, 1 x VGA
• TPM: TPM v2.0 for hardware security
• Power Input: 12/24 VDC via screw-fastened Euroblock terminal
• Power Consumption: Max. 90 W
• Operating Temperature: -30 to 60°C
• Dimensions: 440 x 230 x 43.6 mm
• Weight: 3.54 kg
• Certifications: EN 55032/35, UL 62368-1, IEC 61000-4-x, IEC 60068-2-x
• MTBF: 493,336 hours (Telcordia)
• Warranty: 3 years
