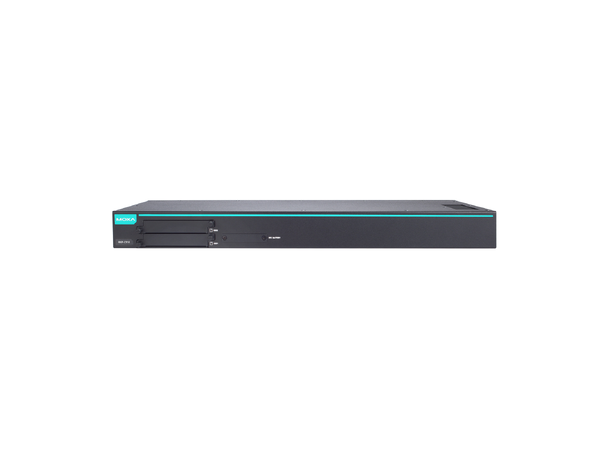

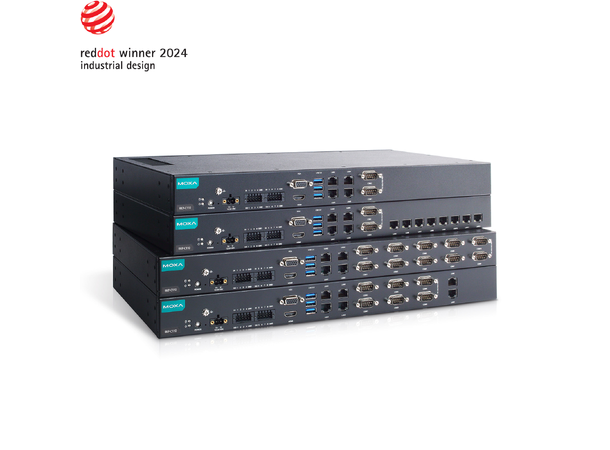

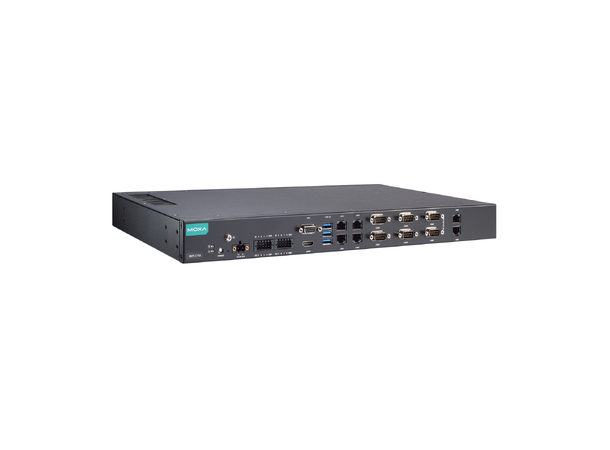

Moxa RKP-C110-C3-2L4C-T

The Moxa RKP-C110-C3-2L4C-T is a fanless 1U rackmount industrial computer designed for automation and edge computing in demanding environments. Powered by an 11th Gen Intel® i3-1115G4E processor, it features a rich set of front-accessible I/O interfaces, dual SSD storage with RAID support, and wide OS compatibility. Its rugged design and versatile connectivity make it ideal for industrial control, networking, and data acquisition applications.

Key Features

• Processor: Intel® i3-1115G4E
• Memory: 8 GB DDR4 pre-installed, expandable up to 32 GB via 1 SODIMM slot
• Storage: 2 x 2.5-inch SSD slots (SATA III), RAID 0/1 support
• Ethernet: 6 x 10/100/1000 Mbps (RJ45)
• Serial Ports: 6 x RS-232/422/485 (DB9 male, software-selectable)
• Digital I/O: 8 x DI, 8 x DO
• USB: 3 x USB 3.0 Type-A
• Video Output: 1 x VGA, 1 x HDMI
• TPM: TPM v2.0
• Power Input: 12/24 VDC via screw-fastened terminal
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Dimensions: 1U rackmount form factor
• Mounting: Rackmount
• IP Rating: IP20
• Supported OS: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, Debian 12, Ubuntu 22.04 LTS, RHEL 9
