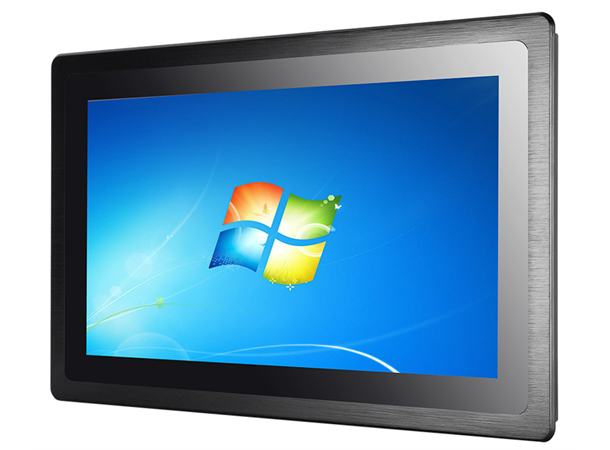

TPC156-M2-J6412 15,6" Panel-PC

By default, there is no operating system included in the standard package (it can be added upon request).
Available in multiple configurations (Windows, Android, Pure Monitor)

This PanelPC has a very thin (3mm) bezel that makes it perfect for panel-mounting.

Internals

• Industrial motherboard for a long lifespan
• CX-J6412
• CPU: Intel® Celeron J6412 Quad-core 2 GHz
• 1 x 8G DDR3 Memory
• 15,6” 16:9 LCD screen HD 1920x1080dpi, 300cd/m²
• Windows 10/11, Linux

Storage

• SSD: mSATA256GB (Standard) up to 512GB

Display

• TFT LCD 15,6” 16:9 1920x1080dpi
• Brightness: 300cd/m²
• 50,000h MTBF backlight
• View angle: 85/85/85/85°

Touchscreen / Glass

• 10-point PCAP touch for fingers (Standard, optional Resistive, No touch)

I/O Connections

• 1x Phoenix Terminal (Power / 1x RS232 / 1x RS485 / 1x CAN / 5x GPIO)
• 1x DC 12–36VDC
• 2x USB2.0, 2x USB3.0
• 2x LAN RJ45 (10/100/1000M)
• 1x HDMI
• 1x SIM
• 1x VGA
• 1x Audio I/O
• 1x RS232
• 2x Wifi Antenna

For more technical details and options see datasheet.
