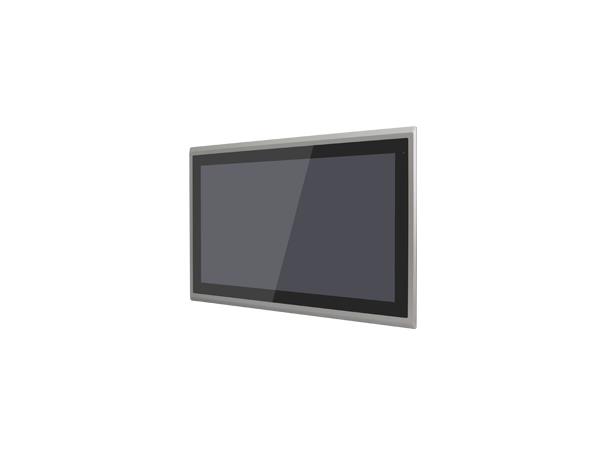

ARCHMI-821 21,5" Panel PC

Aplex/N2930 2,1GHz/4GB/Res.Touch

Product nr: 118534
115087
Specifications
System
CPUOnboard Intel Celeron N2930(1.83GHz) Processor/Atom E3845(1.91GHz) for option
System ChipsetSoC
System MemoryOnboard 4GB DDR3L 1600 MHz/8GB(option)
External I/O
USB2 x USB 3.0 type A
Serial / Parallel1xRS-232 DB-9(COM2)/1xDB-9 RS-232/422/485(Default RS-232)(COM1)/1xHDMI Port(Reserved, no printing) Option: 2xRS-232 DB-9+1xMini-PCIe slot via TB-528C2ME1/2xCAN bus via TB-528CAN2/2xUSB 2.0 type A+1xMini-PCIe slot+1xRS-232 DB-9+1xPower button via TB-528C1
Audio1 x Phone Jack Line-out
LAN2 x GbE RJ-45
Power3 Pins Terminal Block Connector DC Power Input, 1 x 2-Pin DC Power Switch Connector
Storage Space
HDD1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible)
Movable device1 x SD card slot, up to 32GB
Expansion
On board expansion bus1 x Internal Mini-PCIe slot full size
Display
LCD Size21.5" TFT-LCD
Max. resolution1920 x 1080
Max. color16.7M
Luminance(cd/m²)250
Viewangle(H°/V°)178/178
Backlight lifetime(hrs)30000
Touch Screen(Option)
Touch TypeResistive Touch Window
InterfaceUSB
Light transmission(%)80%
Power
Power input9~36V DC
Mechanical
ConstructionAluminum Die-casting Front Bezel and Chassis
IP ratingIP65 Compliant Front Bezel
MountingPanel mounting, VESA 100 x 100
Dimension(mm)557 x 362 x 64.8
Net weight(Kgs)7.8
Enviroment
Operating temperature(°C)0~50°C
Storage temperature(°C)-20~60°C
Storage humidity10 to 90% @ 40°C, non- condensing
CertificationCE/FCC class A/UL
Operating System Support
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB
Ordering Information
Order No Description
ARCHMI-821-0121.5" FHD Fanless HMI barebone with Intel N2930 1.83GHz CPU, 2GB DDR3 RAM, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis
Dimension
