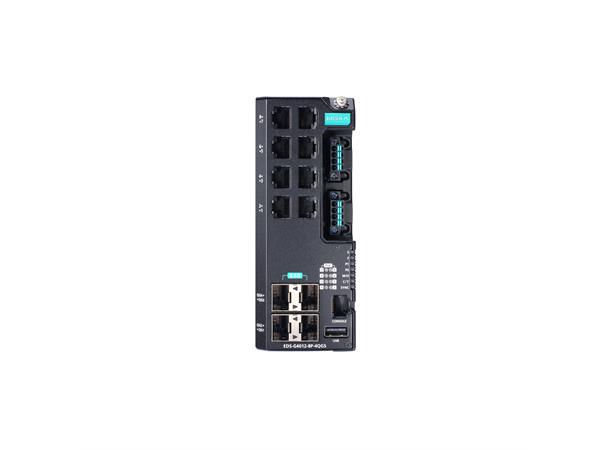

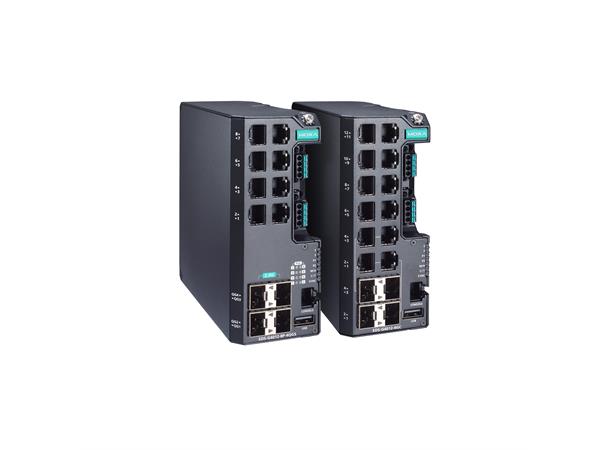

Moxa EDS-G4012-8P-4QGS-LVB
The Moxa EDS-G4012-8P-4QGS-LVB is an industrial-grade, managed PoE switch combining Gigabit PoE and high-speed uplink support. It features 8 PoE-capable 10/100/1000BaseT(X) ports and 4 1000/2500BaseSFP combo ports. Designed for robust industrial environments, it supports dual redundant low-voltage DC inputs (12/24/48 VDC) and operates over a temperature range of –10?°C to 60?°C.
Key Features
- PoE Ports: 8 × 10/100/1000BaseT(X) RJ45 with IEEE 802.3bt PoE support
- Uplink / Combo Ports: 4 × 1000/2500BaseSFP combo ports (copper / fiber)
- Power Input: Dual redundant low-voltage DC (12/24/48 VDC) inputs
- Operating Temperature: –10?°C to 60?°C
- Standards & Features: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3bz, 802.3ad (LACP), 802.1Q VLAN, 802.1p QoS, 802.1X authentication
- Redundancy & Resilience: Turbo Ring v2, Turbo Chain, RSTP/STP, Ring Coupling, Dual-Homing
- Security & Access Control: ACL, MAC filtering, HTTPS/SSL, SSH, RADIUS, TACACS+ support
- MAC / VLAN / Frame Capacity: 16K MAC entries, supports 256 VLANs, jumbo frames up to 9,216 bytes
- Physical & Environment: Rugged metal housing, DIN-rail mountable, surge protection on LAN ports
