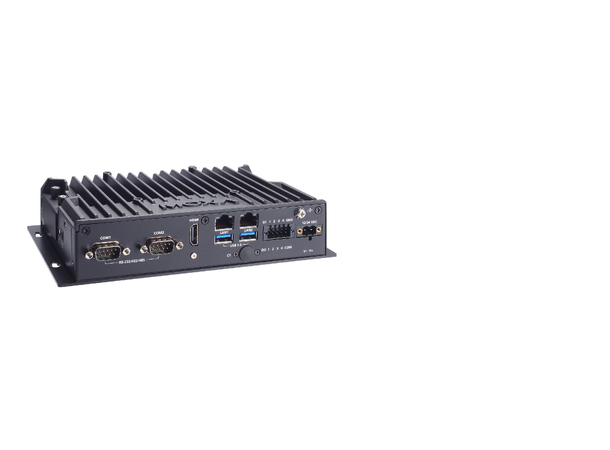

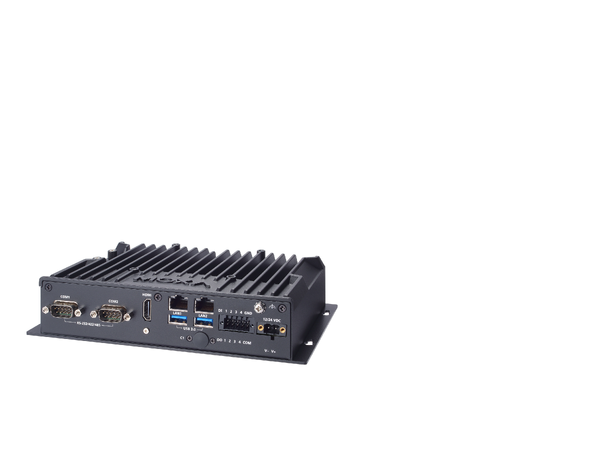

MOXA BXP-A101-E2-T

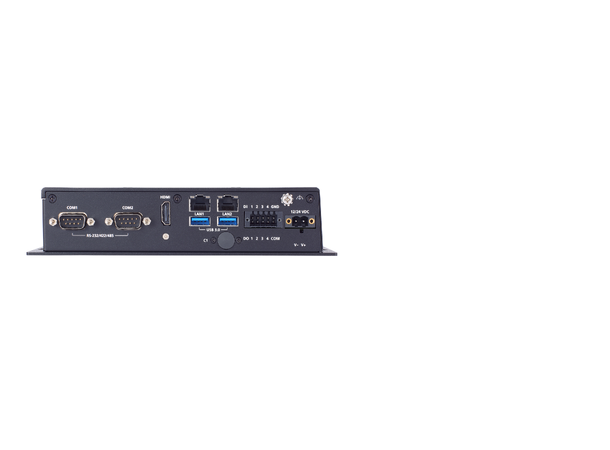

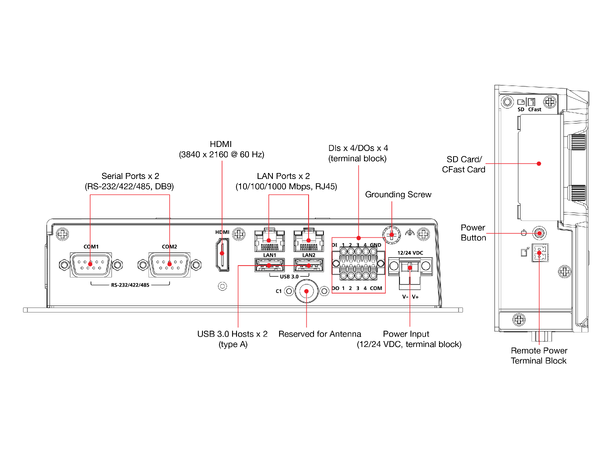

Box computer with Intel Atom® x6211E processor, 2 LAN ports, 2 serial ports, 4 DIs, 4 DOs, 2 USB 3.0 ports, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 70°C operating temperature

Features and Benefits

Box-type computer with fanless design
Intel Atom® X Series processor
Compact size to fit most field applications
-30 to 70°C operating temperature range

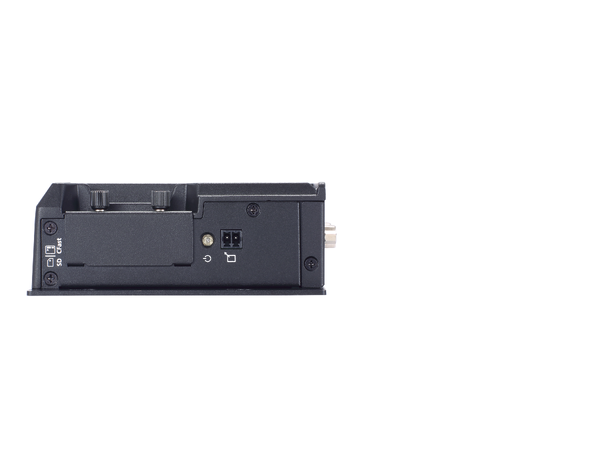

External dual storage with a removable cover design for easy maintenance

Introduction

The BXP-A101 wall-mount computers are powered by an Intel Atom® X processor. The computers come with 2 software-selectable RS-232/422/485 serial ports, 2 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. A dual-storage design that includes CFast and SD slots enables easy storage expansion. A removeable cover design enables users to quickly and easily swap their storage in any location, delivering one more user-friendly feature in a reliable, durable, and versatile platform.

The BXP-A101 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 70°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-A101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.
