Moxa BXP-A101-E2-M2-T

The Moxa BXP-A101-E2-M2-T is a compact, fanless x86 industrial box computer designed for automation and edge computing in harsh environments. Powered by an Intel Atom® x6211E processor, it features versatile I/O, dual storage options, and wide OS support, making it ideal for industrial control and data acquisition tasks.

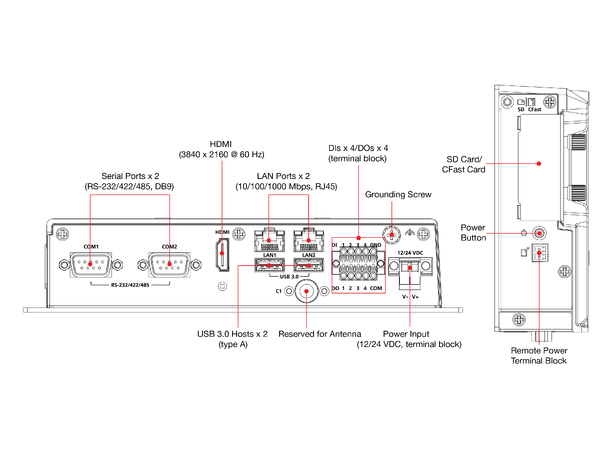

Key Features

• Processor: Intel Atom® x6211E (dual-core, 1.30 GHz, 1.5 MB cache)
• Memory: 8 GB DDR4 pre-installed, expandable up to 32 GB via 1 SODIMM slot
• Ethernet: 2 x 10/100/1000 Mbps (RJ45)
• Serial Ports: 2 x RS-232/422/485 (DB9 male, software-selectable)
• Digital I/O: 4 x DI (dry/wet contact), 4 x DO (sink type, 200 mA/channel)
• USB: 2 x USB 3.0 Type-A
• Video Output: 1 x HDMI 1.2a
• TPM: TPM v2.0
• SIM Slot: 1 x Nano SIM
• Power Input: 12/24 VDC via screw-fastened Euroblock terminal
• Power Consumption: 50 W
• Operating Temperature: -30 to 70°C (-22 to 158°F)
• Dimensions: 207 x 116.1 x 44.5 mm
• Weight: 1,225 g

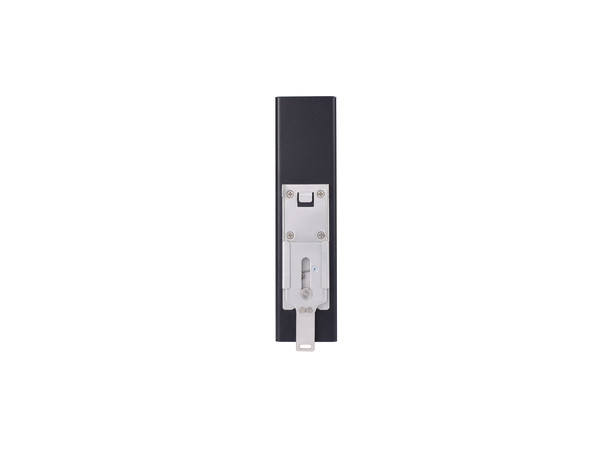

• Mounting: Wall-mount
• IP Rating: IP20
• Supported OS: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Debian 12, Ubuntu 22.04 LTS, RHEL 9
