Moxa BXP-A101-E2-DR-T

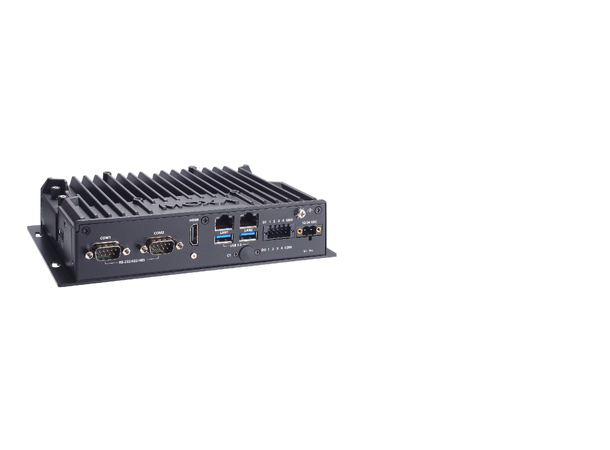

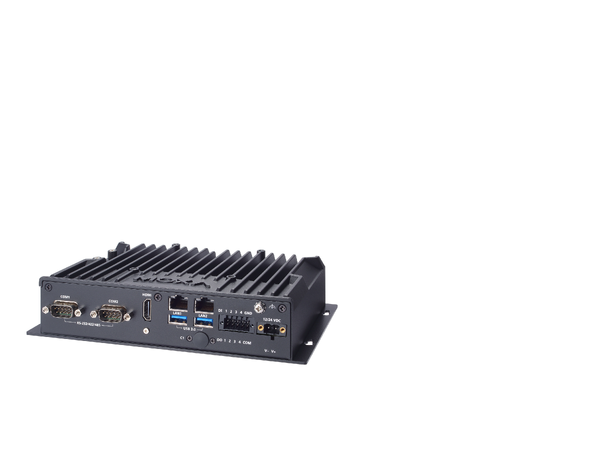

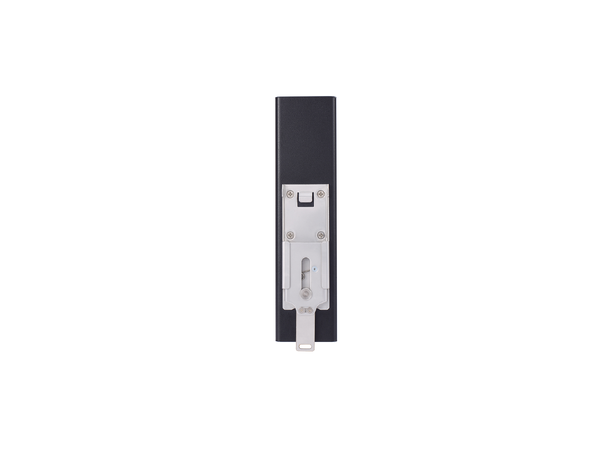

The Moxa BXP-A101-E2-DR-T is a compact, fanless DIN-rail-mounted industrial computer designed for reliable performance in harsh environments. Powered by an Intel Atom® x6211E processor, it supports a wide range of I/O interfaces and dual storage options, making it ideal for edge computing, data acquisition, and industrial automation applications.

Key Features

• Processor: Intel Atom® x6211E (dual-core, 1.30 GHz, 1.5 MB cache).
• Memory: 8 GB DDR4 pre-installed, expandable up to 32 GB.

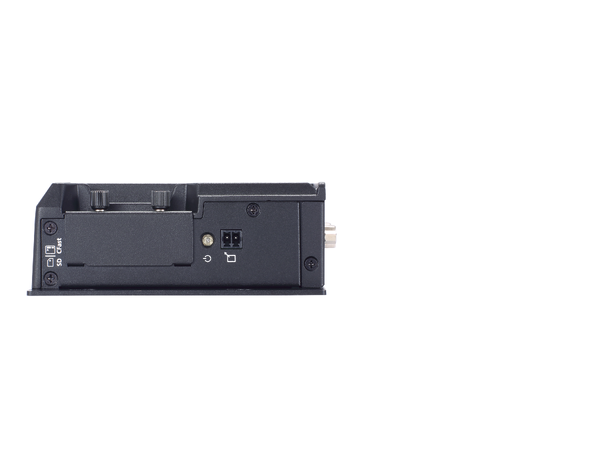

• Storage: 1 CFast slot (SATA III), 1 SD slot (SDHC/SDXC, SD 3.0).

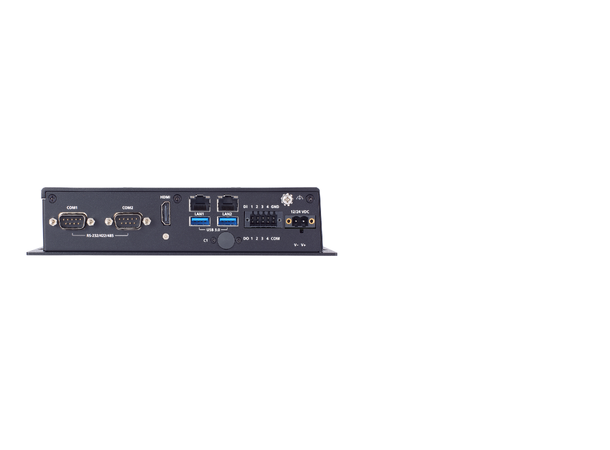

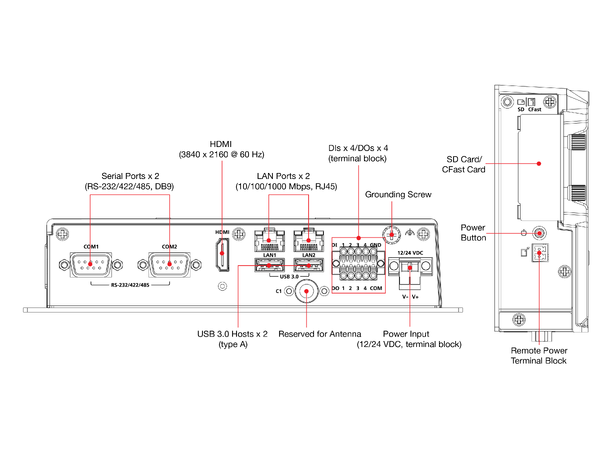

• Interfaces: 2 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 2 USB 3.0 ports, 1 HDMI port, 4 digital inputs, 4 digital outputs.
• Security: TPM v2.0 module for hardware-based security.
• Operating System Support: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Debian 12, Ubuntu 22.04 LTS, RHEL 9.
• Rugged Design: -30 to 70°C operating temperature, IP20-rated metal housing.

Moxa BXP-A101-E2-DR-T Specifications

Ethernet Interface

• Ports: 2 x 10/100/1000 Mbps (RJ45)
• Magnetic Isolation: 1.5 kV

Serial Interface

• Ports: 2 x RS-232/422/485 (DB9 male)
• Baudrate: 50 bps to 115.2 kbps
• Flow Control: RTS/CTS, XON/XOFF, ADDC

Digital I/O

• Inputs: 4 (dry/wet contact)
• Outputs: 4 (sink type, 200 mA/channel)

Power Parameters

• Input Voltage: 12/24 VDC
• Power Consumption: 50 W
• Connector: Screw-fastened Euroblock terminal

Environmental Limits

• Operating Temperature: -30 to 70°C (-22 to 158°F)
• Storage Temperature: -40 to 85°C
• Humidity: 5% to 95% (non-condensing)
